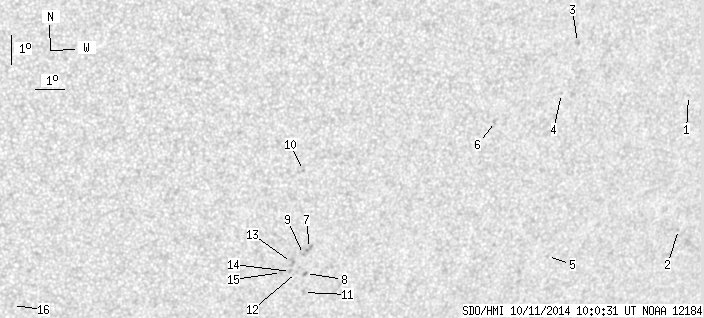

SDO HMI 2014-10-11 10:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 26.19 | 0.00 | 16.19 | -22.15 | 70.61 | 23.31 | 217.84 | 0.6001 | -148.6 | -219.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 10:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.58 | -18.66 | 81.36 | 34.06 | 232.86 | 0.6680 | 433.0 | 367.5 | |
| 0.00 | 0.96 | 0.00 | 0.67 | -23.19 | 82.16 | 34.86 | 228.07 | 0.7086 | 511.0 | 330.5 | |
| 0.00 | 2.45 | 0.00 | 1.52 | -16.66 | 76.86 | 29.55 | 231.64 | 0.6049 | 574.0 | 476.4 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -18.30 | 76.57 | 29.27 | 229.20 | 0.6154 | 536.0 | 459.9 | |
| 0.00 | 0.96 | 0.00 | 0.64 | -23.81 | 77.26 | 29.96 | 223.23 | 0.6693 | 473.0 | 383.7 | |
| 0.00 | 2.63 | 0.00 | 1.62 | -19.10 | 74.35 | 27.04 | 225.98 | 0.5997 | 714.0 | 561.1 | |
| 0.00 | 2.80 | 0.00 | 1.71 | -23.09 | 68.48 | 21.18 | 214.62 | 0.5872 | -752.0 | -724.3 | |
| 0.00 | 1.84 | 0.00 | 1.13 | -23.95 | 68.48 | 21.18 | 213.73 | 0.5969 | -661.0 | -573.0 | |
| 0.00 | 0.70 | 0.00 | 0.43 | -23.29 | 68.30 | 21.00 | 214.19 | 0.5880 | -778.0 | -723.6 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -20.42 | 67.87 | 20.57 | 216.76 | 0.5522 | 615.0 | 482.1 | |
| 0.00 | 1.23 | 0.00 | 0.76 | -24.61 | 68.53 | 21.23 | 213.13 | 0.6046 | -582.0 | -459.0 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -23.90 | 68.16 | 20.86 | 213.38 | 0.5938 | -720.0 | -613.4 | |
| 0.00 | 4.12 | 0.00 | 2.52 | -23.54 | 67.93 | 20.62 | 213.45 | 0.5880 | -601.0 | -697.1 | |
| 0.00 | 1.40 | 0.00 | 0.86 | -23.86 | 67.94 | 20.64 | 213.16 | 0.5917 | -763.0 | -577.0 | |
| 0.00 | 1.40 | 0.00 | 0.86 | -23.88 | 67.63 | 20.33 | 212.75 | 0.5895 | -615.0 | -565.0 | |
| 0.00 | 1.84 | 0.00 | 1.08 | -24.73 | 58.54 | 11.24 | 199.11 | 0.5429 | -761.0 | -642.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
