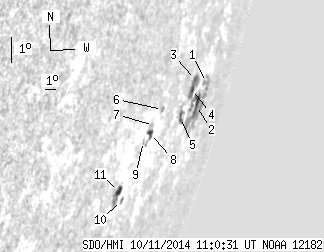

SDO HMI 2014-10-11 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.40 | 88.72 | 49.72 | 224.65 | -15.01 | 123.21 | 76.45 | 253.29 | 0.9805 | 39.0 | 0.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.71 | 0.00 | 23.59 | -14.35 | 125.44 | 78.69 | 254.32 | 0.9874 | -385.0 | -246.8 | |
| 8.23 | 51.50 | 23.50 | 143.37 | -14.99 | 124.70 | 77.95 | 253.57 | 0.9857 | 7.0 | 75.5 | |
| 1.66 | -2.00 | 4.20 | -2.00 | -14.04 | 123.45 | 76.69 | 254.32 | 0.9815 | 313.3 | 999999 | |
| 2.19 | -2.00 | 5.51 | -2.00 | -14.34 | 123.37 | 76.61 | 254.00 | 0.9814 | 506.3 | 999999 | |
| 2.19 | 6.04 | 5.30 | 14.58 | -15.15 | 122.65 | 75.89 | 253.07 | 0.9795 | 456.2 | 422.0 | |
| 0.00 | 2.01 | 0.00 | 3.99 | -14.61 | 119.99 | 73.24 | 253.15 | 0.9692 | -146.0 | -34.2 | |
| 0.00 | 0.79 | 0.00 | 1.52 | -15.06 | 119.41 | 72.66 | 252.59 | 0.9672 | -9.0 | -16.3 | |
| 2.80 | 6.48 | 5.35 | 12.36 | -15.30 | 119.31 | 72.55 | 252.33 | 0.9669 | -148.3 | -68.7 | |
| 0.00 | 1.49 | 0.00 | 2.76 | -15.49 | 118.75 | 72.00 | 252.02 | 0.9647 | -418.0 | -365.8 | |
| 0.00 | 2.10 | 0.00 | 3.85 | -17.31 | 118.16 | 71.41 | 250.06 | 0.9638 | -78.0 | 14.9 | |
| 3.33 | 10.60 | 5.86 | 18.63 | -16.95 | 117.55 | 70.79 | 250.29 | 0.9607 | -464.9 | -368.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
