SDO HMI 2014-10-11 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.29 | 85.54 | 42.52 | 240.70 | -14.98 | 123.16 | 77.51 | 253.49 | 0.9838 | 45.3 | -17.9 | |
|
previous
or next observation for the same group /

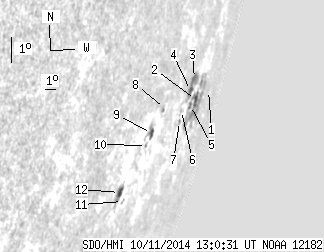

back to the solar disc SDO HMI 2014-10-11 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 1.87 | -14.78 | 127.00 | 81.34 | 254.27 | 0.9936 | -41.0 | -57.0 | |
| 4.90 | 44.92 | 15.57 | 145.79 | -14.81 | 124.61 | 78.96 | 253.90 | 0.9883 | -79.0 | -83.5 | |
| 2.28 | 14.27 | 6.33 | 39.83 | -14.03 | 123.46 | 77.80 | 254.51 | 0.9848 | 308.1 | 322.8 | |
| 1.93 | -3.00 | 5.33 | -3.00 | -14.38 | 123.29 | 77.63 | 254.12 | 0.9845 | 498.3 | 999999 | |
| 1.31 | -2.00 | 3.86 | -2.00 | -14.93 | 123.97 | 78.31 | 253.68 | 0.9867 | 454.7 | 999999 | |
| 0.00 | 1.93 | 0.00 | 5.08 | -14.94 | 122.65 | 76.99 | 253.46 | 0.9829 | 504.0 | 487.0 | |
| 0.00 | 1.66 | 0.00 | 4.46 | -15.31 | 122.80 | 77.15 | 253.12 | 0.9835 | 412.0 | 371.2 | |
| 0.00 | 1.31 | 0.00 | 2.82 | -14.61 | 120.12 | 74.47 | 253.37 | 0.9740 | -85.0 | 6.5 | |
| 2.63 | 8.14 | 5.37 | 16.47 | -15.31 | 119.29 | 73.64 | 252.51 | 0.9714 | -123.6 | -156.4 | |
| 0.00 | 1.31 | 0.00 | 2.65 | -15.67 | 119.07 | 73.42 | 252.11 | 0.9708 | -39.0 | -114.2 | |
| 0.00 | 1.75 | 0.00 | 3.42 | -17.35 | 118.12 | 72.46 | 250.23 | 0.9683 | -49.0 | 1.5 | |
| 3.24 | 9.81 | 6.06 | 18.31 | -16.99 | 117.46 | 71.80 | 250.46 | 0.9652 | -490.4 | -334.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
