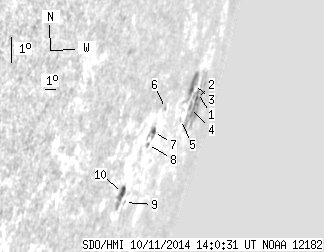

SDO HMI 2014-10-11 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.81 | 75.80 | 39.15 | 221.79 | -14.98 | 123.09 | 77.98 | 253.56 | 0.9851 | 81.6 | -40.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.53 | 38.43 | 1.76 | 132.43 | -14.58 | 124.56 | 79.45 | 254.20 | 0.9895 | -22.5 | -81.5 | |
| 1.75 | -1.00 | 5.94 | -1.00 | -14.82 | 124.73 | 79.62 | 253.99 | 0.9900 | -174.1 | 999999 | |
| 6.48 | 14.27 | 18.82 | 41.59 | -14.21 | 123.40 | 78.29 | 254.40 | 0.9863 | 398.1 | 317.8 | |
| 0.53 | -1.00 | 1.63 | -1.00 | -14.99 | 123.95 | 78.84 | 253.70 | 0.9881 | 429.8 | 999999 | |
| 0.00 | 1.66 | 0.00 | 4.65 | -15.23 | 122.71 | 77.61 | 253.26 | 0.9849 | 471.0 | 446.2 | |
| 0.00 | 1.40 | 0.00 | 3.11 | -14.60 | 120.01 | 74.91 | 253.46 | 0.9757 | -69.0 | -14.5 | |
| 1.84 | 6.30 | 3.89 | 13.23 | -15.24 | 119.22 | 74.11 | 252.67 | 0.9731 | -170.1 | -145.9 | |
| 0.00 | 1.14 | 0.00 | 2.37 | -15.62 | 118.90 | 73.79 | 252.23 | 0.9722 | -282.0 | -155.6 | |
| 0.00 | 0.96 | 0.00 | 1.94 | -17.38 | 118.11 | 73.01 | 250.30 | 0.9705 | -35.0 | -12.2 | |
| 3.68 | 11.64 | 7.11 | 22.47 | -17.00 | 117.52 | 72.41 | 250.58 | 0.9678 | -424.8 | -322.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
