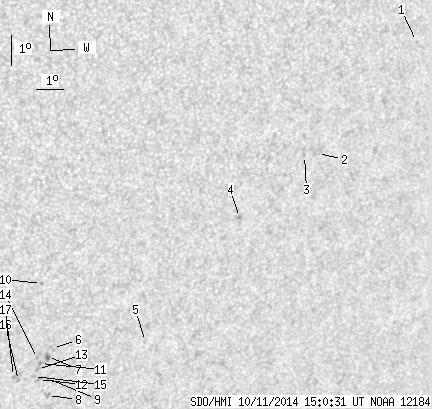

SDO HMI 2014-10-11 15:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 30.03 | 0.00 | 18.88 | -22.32 | 69.90 | 25.34 | 220.26 | 0.6178 | -274.1 | -306.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 15:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.51 | -13.56 | 79.91 | 35.35 | 240.55 | 0.6482 | 314.0 | 367.3 | |
| 0.00 | 2.45 | 0.00 | 1.57 | -16.95 | 76.82 | 32.26 | 233.63 | 0.6365 | 459.0 | 484.0 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -16.98 | 76.35 | 31.79 | 233.19 | 0.6316 | 728.0 | 662.4 | |
| 0.00 | 1.66 | 0.00 | 1.05 | -18.89 | 74.33 | 29.77 | 228.93 | 0.6255 | 774.0 | 605.7 | |
| 0.00 | 1.49 | 0.00 | 0.95 | -22.89 | 71.73 | 27.17 | 221.57 | 0.6362 | 493.0 | 341.4 | |
| 0.00 | 2.10 | 0.00 | 1.31 | -22.97 | 68.39 | 23.83 | 217.91 | 0.6077 | -549.0 | -532.3 | |
| 0.00 | 3.68 | 0.00 | 2.29 | -23.23 | 68.26 | 23.70 | 217.47 | 0.6094 | -841.0 | -691.4 | |
| 0.00 | 3.33 | 0.00 | 2.11 | -24.59 | 68.53 | 23.97 | 216.33 | 0.6258 | -623.0 | -523.4 | |
| 0.00 | 1.40 | 0.00 | 0.88 | -24.00 | 68.41 | 23.85 | 216.82 | 0.6186 | -613.0 | -529.2 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -20.73 | 67.61 | 23.05 | 219.54 | 0.5776 | 631.0 | 596.1 | |
| 0.00 | 1.31 | 0.00 | 0.82 | -23.46 | 68.05 | 23.50 | 216.99 | 0.6101 | -912.0 | -798.9 | |
| 0.00 | 2.80 | 0.00 | 1.76 | -24.02 | 68.09 | 23.53 | 216.44 | 0.6162 | -666.0 | -572.7 | |
| 0.00 | 1.66 | 0.00 | 1.04 | -23.67 | 67.99 | 23.43 | 216.69 | 0.6117 | -854.0 | -695.9 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -23.29 | 67.91 | 23.36 | 217.02 | 0.6071 | -877.0 | -674.0 | |
| 0.00 | 1.84 | 0.00 | 1.15 | -23.90 | 67.89 | 23.33 | 216.33 | 0.6134 | -788.0 | -669.9 | |
| 0.00 | 1.66 | 0.00 | 1.04 | -24.02 | 67.37 | 22.82 | 215.62 | 0.6105 | -690.0 | -575.2 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -23.87 | 67.17 | 22.61 | 215.53 | 0.6072 | -645.0 | -530.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
