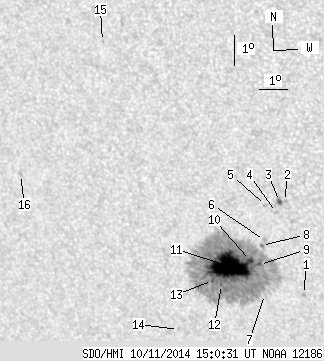

SDO HMI 2014-10-11 15:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.03 | 442.76 | 42.32 | 275.92 | -20.49 | 18.03 | -26.52 | 136.29 | 0.6075 | 981.7 | 322.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 15:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.58 | 0.00 | 0.97 | -21.39 | 20.45 | -24.11 | 140.00 | 0.5939 | -755.0 | -611.6 | |
| 0.00 | 2.19 | 0.00 | 1.31 | -18.31 | 20.29 | -24.26 | 136.05 | 0.5643 | 903.0 | 617.6 | |
| 1.93 | 4.20 | 1.16 | 2.52 | -18.32 | 20.12 | -24.44 | 135.85 | 0.5661 | 915.3 | 733.2 | |
| 0.00 | 1.40 | 0.00 | 0.84 | -18.69 | 19.96 | -24.60 | 136.14 | 0.5713 | 833.0 | 631.6 | |
| 0.00 | 1.84 | 0.00 | 1.11 | -18.47 | 19.61 | -24.95 | 135.47 | 0.5727 | 758.0 | 583.8 | |
| 0.00 | 1.84 | 0.00 | 1.12 | -19.64 | 19.38 | -25.17 | 136.69 | 0.5863 | 888.0 | 642.6 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -21.46 | 19.06 | -25.50 | 138.52 | 0.6073 | -88.0 | -54.4 | |
| 0.35 | 424.46 | 0.21 | 264.69 | -19.81 | 19.25 | -25.31 | 136.76 | 0.5893 | 851.2 | 325.9 | |
| 1.40 | -8.00 | 0.86 | -8.00 | -20.45 | 19.06 | -25.49 | 137.34 | 0.5973 | 1039.1 | 999999 | |
| 2.28 | -8.00 | 1.40 | -8.00 | -20.33 | 18.77 | -25.79 | 136.87 | 0.5990 | 1361.8 | 999999 | |
| 59.70 | -8.00 | 37.20 | -8.00 | -20.57 | 17.97 | -26.58 | 136.31 | 0.6088 | 1185.7 | 999999 | |
| 0.88 | -8.00 | 0.55 | -8.00 | -21.20 | 17.57 | -26.99 | 136.64 | 0.6186 | 319.7 | 999999 | |
| 1.49 | -8.00 | 0.94 | -8.00 | -21.08 | 17.26 | -27.29 | 136.19 | 0.6203 | 390.8 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -22.82 | 15.64 | -28.92 | 136.62 | 0.6512 | 593.0 | 491.5 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -13.44 | 14.64 | -29.92 | 123.49 | 0.5839 | -708.0 | -512.5 | |
| 0.00 | 2.28 | 0.00 | 1.49 | -17.93 | 10.83 | -33.72 | 126.48 | 0.6592 | -606.0 | -406.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
