SDO HMI 2014-10-11 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.02 | 0.00 | 10.85 | 14.13 | 57.56 | 13.55 | 303.49 | 0.2710 | 226.1 | 140.4 | |
|
previous
or next observation for the same group /

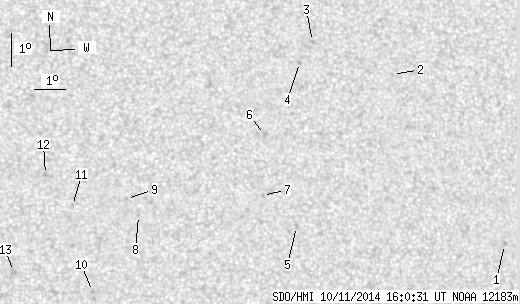

back to the solar disc SDO HMI 2014-10-11 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.84 | 0.00 | 0.99 | 12.03 | 66.62 | 22.62 | 286.45 | 0.3939 | -628.0 | -583.2 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 17.31 | 63.45 | 19.44 | 302.17 | 0.3770 | -661.0 | -528.3 | |
| 0.00 | 1.49 | 0.00 | 0.79 | 18.41 | 60.92 | 16.91 | 308.20 | 0.3527 | -720.0 | -525.2 | |
| 0.00 | 1.66 | 0.00 | 0.88 | 17.78 | 60.43 | 16.42 | 307.45 | 0.3406 | -788.0 | -608.7 | |
| 0.00 | 2.10 | 0.00 | 1.09 | 12.82 | 59.93 | 15.92 | 294.26 | 0.2947 | 636.0 | 567.6 | |
| 0.00 | 2.80 | 0.00 | 1.46 | 15.62 | 59.11 | 15.10 | 303.91 | 0.3036 | -629.0 | -592.7 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 13.78 | 58.91 | 14.90 | 298.71 | 0.2860 | 830.0 | 576.0 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 13.27 | 54.96 | 10.96 | 304.34 | 0.2251 | 715.0 | 592.0 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 13.79 | 54.61 | 10.61 | 307.12 | 0.2252 | 717.0 | 568.9 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 11.02 | 53.44 | 9.44 | 298.33 | 0.1837 | 910.0 | 721.0 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 13.61 | 52.92 | 8.91 | 311.17 | 0.2009 | 812.0 | 648.1 | |
| 0.00 | 1.49 | 0.00 | 0.75 | 14.56 | 52.11 | 8.11 | 317.29 | 0.2021 | 949.0 | 800.1 | |
| 0.00 | 3.33 | 0.00 | 1.67 | 11.66 | 51.03 | 7.02 | 309.09 | 0.1549 | 796.0 | 704.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
