SDO HMI 2014-10-11 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.88 | 37.47 | 0.55 | 23.77 | -23.11 | 68.80 | 25.35 | 219.17 | 0.6265 | -285.2 | -334.9 | |
|
previous
or next observation for the same group /

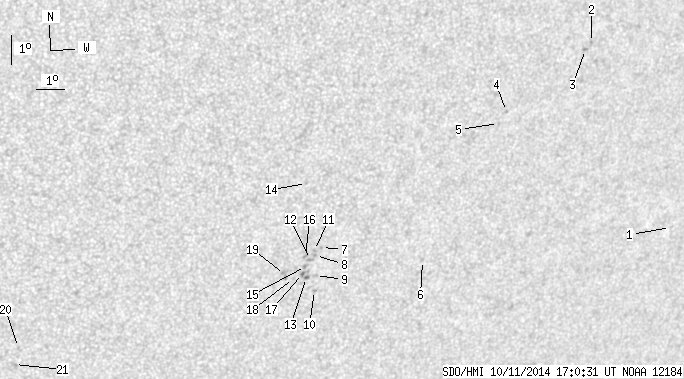

back to the solar disc SDO HMI 2014-10-11 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.84 | -23.18 | 81.88 | 38.43 | 230.66 | 0.7410 | 419.0 | 310.1 | |
| 0.00 | 1.40 | 0.00 | 0.91 | -16.73 | 77.05 | 33.60 | 234.98 | 0.6494 | 704.0 | 542.9 | |
| 0.00 | 1.58 | 0.00 | 1.02 | -16.95 | 76.87 | 33.41 | 234.56 | 0.6489 | 749.0 | 620.2 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -18.81 | 74.31 | 30.85 | 230.00 | 0.6360 | 692.0 | 614.6 | |
| 0.00 | 1.14 | 0.00 | 0.73 | -19.20 | 74.09 | 30.64 | 229.33 | 0.6368 | 509.0 | 436.9 | |
| 0.00 | 1.75 | 0.00 | 1.15 | -23.70 | 72.28 | 28.83 | 222.30 | 0.6583 | 459.0 | 390.5 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -23.05 | 68.44 | 24.99 | 219.10 | 0.6185 | -688.0 | -608.0 | |
| 0.00 | 1.14 | 0.00 | 0.72 | -23.31 | 68.28 | 24.82 | 218.63 | 0.6198 | -830.0 | -743.5 | |
| 0.00 | 1.84 | 0.00 | 1.17 | -24.01 | 68.42 | 24.96 | 218.04 | 0.6280 | -612.0 | -493.7 | |
| 0.00 | 1.49 | 0.00 | 0.95 | -24.53 | 68.49 | 25.04 | 217.56 | 0.6339 | -670.0 | -565.4 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -23.14 | 68.21 | 24.75 | 218.75 | 0.6174 | -837.0 | -678.8 | |
| 0.00 | 2.54 | 0.00 | 1.60 | -23.44 | 68.12 | 24.67 | 218.32 | 0.6198 | -832.0 | -677.6 | |
| 0.53 | 6.30 | 0.33 | 3.99 | -24.06 | 68.10 | 24.65 | 217.64 | 0.6259 | -673.3 | -596.3 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -20.84 | 67.50 | 24.05 | 220.58 | 0.5877 | 741.0 | 503.5 | |
| 0.00 | 2.10 | 0.00 | 1.32 | -23.68 | 67.99 | 24.54 | 217.92 | 0.6211 | -837.0 | -734.5 | |
| 0.00 | 2.10 | 0.00 | 1.32 | -23.30 | 67.92 | 24.46 | 218.25 | 0.6165 | -758.0 | -742.4 | |
| 0.35 | -13.00 | 0.22 | -13.00 | -23.91 | 67.93 | 24.48 | 217.60 | 0.6230 | -797.0 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.61 | -24.07 | 67.64 | 24.18 | 217.11 | 0.6222 | -530.0 | -474.1 | |
| 0.00 | 4.11 | 0.00 | 2.58 | -23.92 | 67.29 | 23.83 | 216.88 | 0.6177 | -670.0 | -677.2 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -26.11 | 58.32 | 14.86 | 203.48 | 0.5802 | -622.0 | -521.2 | |
| 0.00 | 2.89 | 0.00 | 1.76 | -26.71 | 58.26 | 14.80 | 202.94 | 0.5876 | -666.0 | -424.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
