SDO HMI 2014-10-11 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.66 | 0.00 | 9.67 | 13.89 | 57.76 | 14.86 | 300.18 | 0.2871 | 287.6 | 241.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

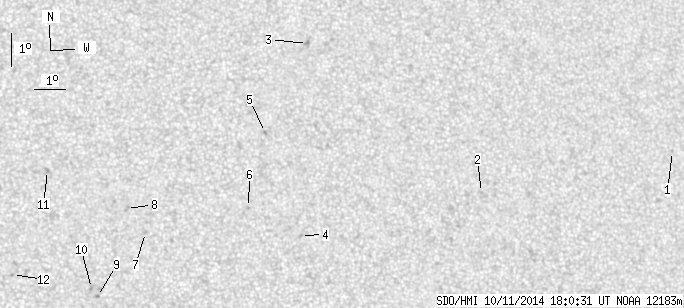

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.60 | 14.45 | 72.77 | 29.87 | 288.19 | 0.5097 | -594.0 | -447.7 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 13.52 | 66.07 | 23.16 | 289.73 | 0.4080 | -774.0 | -683.4 | |
| 0.00 | 2.71 | 0.00 | 1.44 | 18.25 | 60.79 | 17.88 | 306.40 | 0.3639 | -878.0 | -673.3 | |
| 0.00 | 1.75 | 0.00 | 0.91 | 12.45 | 60.05 | 17.14 | 291.75 | 0.3113 | 675.0 | 569.1 | |
| 0.00 | 1.49 | 0.00 | 0.78 | 15.59 | 59.16 | 16.26 | 302.02 | 0.3194 | -952.0 | -714.8 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 13.34 | 58.45 | 15.54 | 296.41 | 0.2924 | 882.0 | 693.5 | |
| 0.00 | 1.49 | 0.00 | 0.76 | 12.67 | 55.15 | 12.24 | 299.38 | 0.2385 | 734.0 | 562.1 | |
| 0.00 | 2.63 | 0.00 | 1.34 | 13.41 | 54.59 | 11.69 | 303.22 | 0.2366 | 755.0 | 705.8 | |
| 0.00 | 1.49 | 0.00 | 0.75 | 10.78 | 53.57 | 10.67 | 294.56 | 0.2008 | 907.0 | 767.3 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 11.03 | 53.39 | 10.49 | 296.03 | 0.1998 | 952.0 | 780.8 | |
| 0.00 | 1.84 | 0.00 | 0.93 | 14.61 | 52.17 | 9.27 | 313.70 | 0.2165 | 887.0 | 763.7 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 11.49 | 50.97 | 8.06 | 304.54 | 0.1677 | 857.0 | 659.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
