SDO HMI 2014-10-11 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.75 | 7.79 | 1.42 | 6.16 | 19.90 | 351.54 | -50.82 | 69.50 | 0.7793 | -217.5 | -70.9 | |
|
previous
or next observation for the same group /

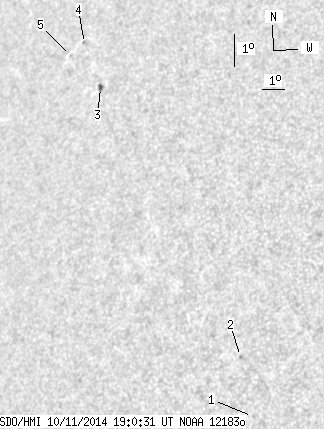

back to the solar disc SDO HMI 2014-10-11 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.46 | 11.52 | 0.44 | -41.91 | 79.55 | 0.6678 | -494.0 | -421.6 | |
| 0.00 | 0.88 | 0.00 | 0.59 | 13.28 | 359.59 | -42.76 | 77.03 | 0.6804 | -759.0 | -689.1 | |
| 1.75 | 3.41 | 1.42 | 2.76 | 20.89 | 350.56 | -51.80 | 68.25 | 0.7927 | -550.0 | -357.1 | |
| 0.00 | 2.10 | 0.00 | 1.76 | 22.16 | 349.05 | -53.30 | 66.95 | 0.8092 | 468.0 | 331.0 | |
| 0.00 | 0.70 | 0.00 | 0.59 | 21.73 | 348.52 | -53.83 | 67.56 | 0.8136 | 387.0 | 274.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
