SDO HMI 2014-10-11 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.23 | 485.34 | 39.29 | 297.17 | -20.59 | 17.87 | -24.48 | 138.65 | 0.5892 | 1018.6 | 338.5 | |
|
previous
or next observation for the same group /

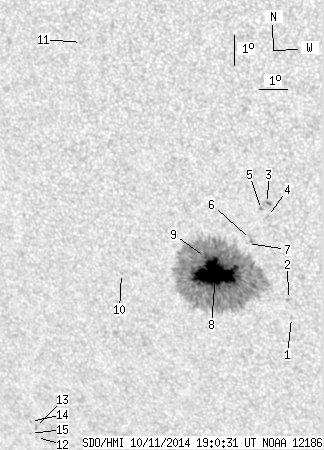

back to the solar disc SDO HMI 2014-10-11 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.59 | -21.97 | 20.36 | -21.99 | 143.16 | 0.5815 | -691.0 | -526.5 | |
| 0.00 | 1.31 | 0.00 | 0.79 | -21.36 | 20.35 | -22.00 | 142.47 | 0.5749 | -689.0 | -531.0 | |
| 0.00 | 3.06 | 0.00 | 1.80 | -18.18 | 20.10 | -22.25 | 138.32 | 0.5431 | 944.0 | 787.6 | |
| 0.00 | 1.40 | 0.00 | 0.83 | -18.61 | 20.04 | -22.31 | 138.79 | 0.5482 | 903.0 | 631.0 | |
| 0.00 | 1.31 | 0.00 | 0.78 | -18.39 | 19.87 | -22.48 | 138.29 | 0.5475 | 892.0 | 758.2 | |
| 0.00 | 2.71 | 0.00 | 1.62 | -19.40 | 19.34 | -23.01 | 138.92 | 0.5632 | 937.0 | 787.5 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -19.54 | 19.22 | -23.13 | 138.94 | 0.5658 | 710.0 | 570.3 | |
| 63.97 | 467.23 | 39.13 | 285.86 | -20.59 | 17.93 | -24.42 | 138.71 | 0.5887 | 1335.4 | 347.4 | |
| 0.26 | -8.00 | 0.16 | -8.00 | -20.07 | 17.67 | -24.68 | 137.78 | 0.5859 | 1032.3 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -20.76 | 14.55 | -27.80 | 135.29 | 0.6222 | 662.0 | 557.1 | |
| 0.00 | 1.31 | 0.00 | 0.78 | -13.27 | 14.36 | -27.99 | 125.00 | 0.5598 | -694.0 | -629.3 | |
| 0.00 | 1.23 | 0.00 | 0.87 | -26.66 | 9.80 | -32.55 | 137.59 | 0.7153 | -449.0 | -316.8 | |
| 0.00 | 1.84 | 0.00 | 1.29 | -26.30 | 9.88 | -32.48 | 137.28 | 0.7118 | -738.0 | -564.1 | |
| 0.00 | 0.70 | 0.00 | 0.49 | -26.10 | 9.74 | -32.61 | 136.95 | 0.7113 | -445.0 | -388.4 | |
| 0.00 | 0.79 | 0.00 | 0.56 | -26.53 | 9.60 | -32.75 | 137.29 | 0.7159 | -512.0 | -501.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
