SDO HMI 2014-10-11 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.93 | 46.84 | 8.16 | 208.00 | -14.20 | 122.84 | 81.05 | 254.80 | 0.9926 | 123.6 | 54.3 | |
|
previous
or next observation for the same group /

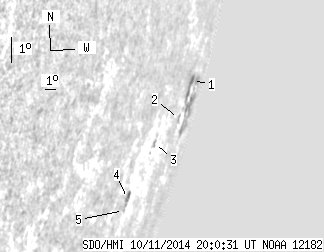

back to the solar disc SDO HMI 2014-10-11 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.93 | 36.32 | 8.16 | 178.35 | -13.90 | 123.42 | 81.63 | 255.19 | 0.9939 | 254.3 | 67.2 | |
| 0.00 | 2.63 | 0.00 | 10.11 | -14.98 | 122.35 | 80.55 | 253.96 | 0.9921 | 505.0 | 447.0 | |
| 0.00 | 2.28 | 0.00 | 6.11 | -15.40 | 118.99 | 77.19 | 253.03 | 0.9837 | -226.0 | -180.4 | |
| 0.00 | 4.73 | 0.00 | 11.33 | -16.96 | 117.24 | 75.44 | 251.17 | 0.9791 | -526.0 | -296.4 | |
| 0.00 | 0.88 | 0.00 | 2.10 | -17.34 | 117.19 | 75.39 | 250.79 | 0.9791 | -325.0 | -303.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
