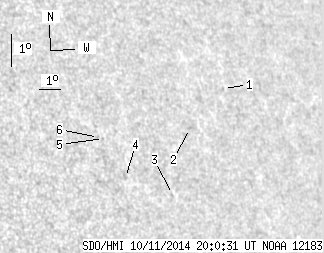

SDO HMI 2014-10-11 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.38 | 0.00 | 4.67 | 14.74 | 89.25 | 47.46 | 284.43 | 0.7376 | 269.7 | 258.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.55 | 16.31 | 93.19 | 51.40 | 286.02 | 0.7826 | 116.0 | 148.8 | |
| 0.00 | 1.40 | 0.00 | 1.06 | 15.24 | 91.16 | 49.36 | 284.87 | 0.7598 | 138.0 | 143.6 | |
| 0.00 | 0.61 | 0.00 | 0.45 | 13.33 | 89.80 | 48.00 | 282.47 | 0.7429 | -597.0 | -449.0 | |
| 0.00 | 2.36 | 0.00 | 1.68 | 14.00 | 87.84 | 46.05 | 283.58 | 0.7209 | 542.0 | 354.7 | |
| 0.00 | 0.35 | 0.00 | 0.25 | 15.24 | 87.20 | 45.40 | 285.40 | 0.7149 | 728.0 | 642.8 | |
| 0.00 | 0.96 | 0.00 | 0.68 | 15.29 | 86.99 | 45.19 | 285.49 | 0.7125 | 691.0 | 621.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
