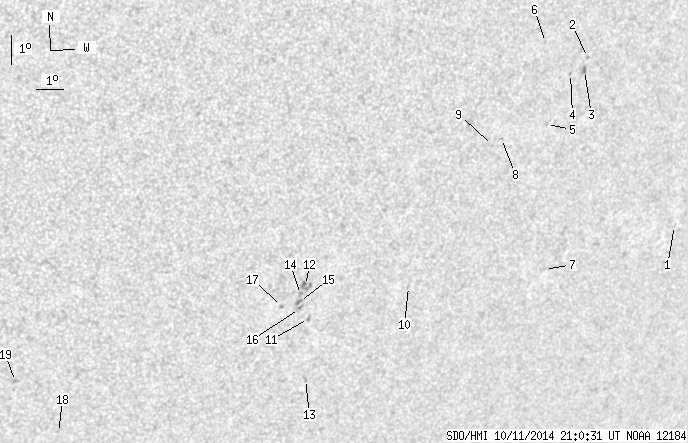

SDO HMI 2014-10-11 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 35.47 | 0.00 | 23.14 | -22.34 | 70.15 | 28.91 | 223.64 | 0.6526 | -60.9 | -233.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.60 | -22.26 | 82.27 | 41.02 | 233.41 | 0.7589 | 223.0 | 278.9 | |
| 0.00 | 1.31 | 0.00 | 0.87 | -16.36 | 77.09 | 35.84 | 237.14 | 0.6713 | 628.0 | 518.3 | |
| 0.00 | 3.68 | 0.00 | 2.46 | -16.78 | 77.06 | 35.82 | 236.58 | 0.6737 | 644.0 | 504.4 | |
| 0.00 | 0.96 | 0.00 | 0.64 | -16.84 | 76.54 | 35.29 | 236.12 | 0.6684 | 643.0 | 562.4 | |
| 0.00 | 0.79 | 0.00 | 0.53 | -18.46 | 75.98 | 34.73 | 233.63 | 0.6735 | 619.0 | 540.1 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -15.77 | 75.37 | 34.12 | 236.67 | 0.6485 | 539.0 | 462.5 | |
| 0.00 | 0.53 | 0.00 | 0.37 | -23.39 | 77.24 | 35.99 | 228.70 | 0.7203 | 469.0 | 396.2 | |
| 0.00 | 1.40 | 0.00 | 0.92 | -18.82 | 74.34 | 33.10 | 231.90 | 0.6591 | 736.0 | 621.6 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -19.03 | 74.05 | 32.80 | 231.40 | 0.6577 | 580.0 | 472.9 | |
| 0.00 | 1.40 | 0.00 | 0.94 | -23.63 | 71.98 | 30.73 | 224.13 | 0.6747 | 411.0 | 362.6 | |
| 0.00 | 1.93 | 0.00 | 1.25 | -24.54 | 68.45 | 27.20 | 219.80 | 0.6520 | -561.0 | -471.4 | |
| 0.00 | 6.91 | 0.00 | 4.44 | -23.38 | 68.08 | 26.83 | 220.69 | 0.6378 | -814.0 | -763.5 | |
| 0.00 | 2.28 | 0.00 | 1.52 | -26.70 | 68.88 | 27.63 | 217.96 | 0.6759 | -718.0 | -526.5 | |
| 0.00 | 2.36 | 0.00 | 1.52 | -23.68 | 67.96 | 26.72 | 220.23 | 0.6397 | -803.0 | -692.2 | |
| 0.00 | 2.45 | 0.00 | 1.58 | -23.92 | 67.98 | 26.73 | 219.99 | 0.6422 | -810.0 | -718.6 | |
| 0.00 | 1.93 | 0.00 | 1.24 | -24.17 | 68.03 | 26.79 | 219.78 | 0.6450 | -682.0 | -527.3 | |
| 0.00 | 1.58 | 0.00 | 1.01 | -24.06 | 67.35 | 26.10 | 219.19 | 0.6382 | -795.0 | -665.0 | |
| 0.00 | 0.44 | 0.00 | 0.28 | -28.18 | 60.12 | 18.88 | 207.05 | 0.6294 | -615.0 | -558.4 | |
| 0.00 | 3.06 | 0.00 | 1.88 | -26.29 | 58.28 | 17.04 | 206.29 | 0.5954 | -851.0 | -540.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
