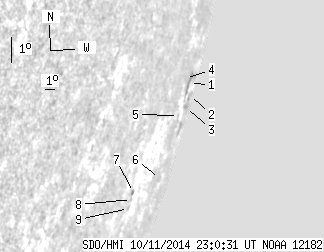

SDO HMI 2014-10-11 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.07 | 0.00 | 104.84 | -14.64 | 123.03 | 82.89 | 254.61 | 0.9958 | 23.9 | 90.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.05 | 0.00 | 44.76 | -13.99 | 123.19 | 83.05 | 255.28 | 0.9963 | 301.0 | 212.5 | |
| 0.00 | 2.54 | 0.00 | 18.78 | -14.50 | 124.39 | 84.24 | 254.93 | 0.9979 | -50.0 | -92.2 | |
| 0.00 | 3.41 | 0.00 | 23.05 | -14.83 | 124.01 | 83.87 | 254.55 | 0.9975 | 142.0 | 78.7 | |
| 0.00 | 0.96 | 0.00 | 3.99 | -13.67 | 121.63 | 81.49 | 255.40 | 0.9936 | 85.0 | 80.8 | |
| 0.00 | 0.26 | 0.00 | 1.25 | -14.90 | 122.30 | 82.16 | 254.27 | 0.9951 | 404.0 | 411.7 | |
| 0.00 | 1.14 | 0.00 | 5.57 | -16.85 | 121.97 | 81.82 | 252.28 | 0.9950 | 152.0 | 137.0 | |
| 0.00 | 0.96 | 0.00 | 2.64 | -16.79 | 117.29 | 77.14 | 251.63 | 0.9843 | -142.0 | -138.2 | |
| 0.00 | 0.26 | 0.00 | 0.72 | -17.02 | 117.30 | 77.16 | 251.41 | 0.9845 | -343.0 | -348.3 | |
| 0.00 | 1.49 | 0.00 | 4.08 | -17.30 | 117.26 | 77.12 | 251.12 | 0.9845 | -334.0 | -275.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
