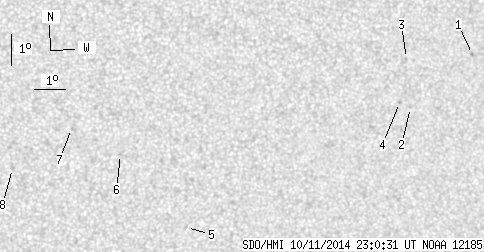

SDO HMI 2014-10-11 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.97 | 0.00 | 4.40 | -14.88 | 54.72 | 14.58 | 213.53 | 0.4403 | -138.9 | -80.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.69 | -12.74 | 61.47 | 21.33 | 228.30 | 0.4771 | 877.0 | 654.6 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -14.34 | 59.58 | 19.44 | 223.17 | 0.4732 | 679.0 | 504.3 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -12.78 | 59.31 | 19.17 | 225.20 | 0.4533 | -704.0 | -602.4 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -14.17 | 59.20 | 19.06 | 222.87 | 0.4673 | -658.0 | -596.1 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -18.00 | 52.61 | 12.47 | 206.81 | 0.4570 | 684.0 | 539.5 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -15.58 | 50.36 | 10.22 | 204.91 | 0.4075 | -561.0 | -417.5 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -14.71 | 48.78 | 8.64 | 202.29 | 0.3847 | -733.0 | -665.0 | |
| 0.00 | 1.31 | 0.00 | 0.71 | -15.97 | 46.98 | 6.84 | 196.96 | 0.3940 | -695.0 | -416.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
