SDO HMI 2014-10-12 01:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.88 | 4.30 | 0.66 | 3.09 | 19.09 | 353.26 | -45.78 | 69.58 | 0.7236 | -209.3 | -204.4 | |
|
previous
or next observation for the same group /

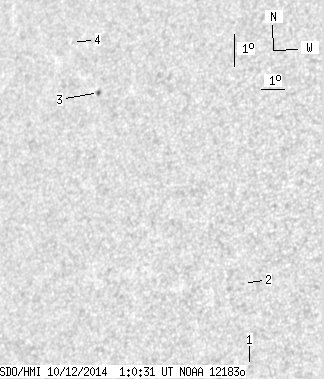

back to the solar disc SDO HMI 2014-10-12 01:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.56 | 13.20 | 359.72 | -39.32 | 76.60 | 0.6365 | -407.0 | -342.4 | |
| 0.00 | 0.70 | 0.00 | 0.46 | 15.68 | 358.95 | -40.09 | 72.94 | 0.6509 | -452.0 | -364.5 | |
| 0.88 | 1.93 | 0.66 | 1.45 | 21.01 | 350.83 | -48.21 | 67.36 | 0.7565 | -575.6 | -465.5 | |
| 0.00 | 0.79 | 0.00 | 0.62 | 22.44 | 348.88 | -50.16 | 65.96 | 0.7794 | 473.0 | 371.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
