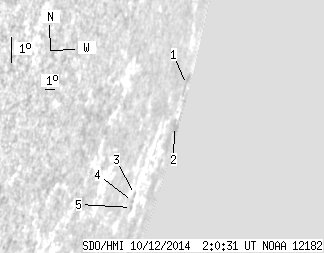

SDO HMI 2014-10-12 02:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.21 | 0.00 | 115.37 | -14.80 | 122.33 | 83.84 | 254.58 | 0.9972 | -12.8 | 204.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-12 02:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.57 | 0.00 | 47.56 | -13.93 | 122.98 | 84.49 | 255.53 | 0.9980 | 317.0 | 232.3 | |
| 0.00 | 7.18 | 0.00 | 60.02 | -15.20 | 122.49 | 84.00 | 254.21 | 0.9977 | 337.0 | 239.6 | |
| 0.00 | 0.88 | 0.00 | 2.76 | -16.75 | 116.99 | 78.50 | 251.89 | 0.9880 | -182.0 | -171.0 | |
| 0.00 | 0.79 | 0.00 | 2.48 | -16.97 | 117.01 | 78.52 | 251.67 | 0.9881 | -243.0 | -285.4 | |
| 0.00 | 0.79 | 0.00 | 2.55 | -17.18 | 117.17 | 78.68 | 251.49 | 0.9886 | -293.0 | -244.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
