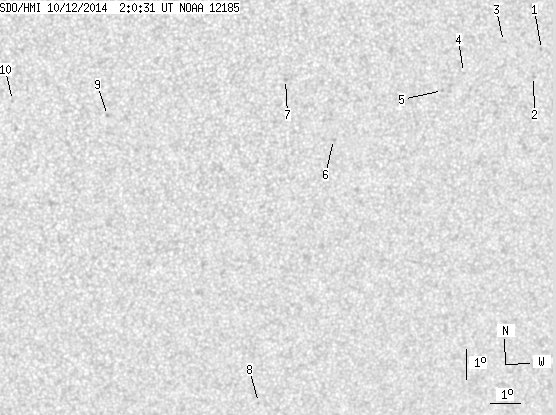

SDO HMI 2014-10-12 02:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.27 | 0.00 | 6.93 | -14.88 | 57.19 | 18.70 | 220.54 | 0.4776 | 171.3 | 199.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-12 02:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.66 | -13.11 | 62.86 | 24.37 | 231.49 | 0.5157 | 664.0 | 554.8 | |
| 0.00 | 1.40 | 0.00 | 0.81 | -13.96 | 62.68 | 24.19 | 229.98 | 0.5214 | 641.0 | 514.6 | |
| 0.00 | 1.75 | 0.00 | 1.00 | -12.80 | 61.55 | 23.06 | 230.44 | 0.4976 | 625.0 | 505.0 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -13.72 | 60.31 | 21.82 | 227.43 | 0.4924 | 53.0 | 187.7 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -14.27 | 59.67 | 21.18 | 225.74 | 0.4909 | 674.0 | 463.5 | |
| 0.00 | 1.58 | 0.00 | 0.88 | -15.71 | 56.22 | 17.73 | 218.64 | 0.4714 | 568.0 | 548.2 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -13.73 | 54.51 | 16.02 | 218.65 | 0.4311 | -820.0 | -664.1 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -24.42 | 54.68 | 16.19 | 206.73 | 0.5666 | 543.0 | 471.0 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -14.73 | 48.92 | 10.43 | 206.32 | 0.3966 | -892.0 | -680.8 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -14.19 | 45.93 | 7.44 | 199.93 | 0.3697 | -343.0 | -366.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
