SDO HMI 2014-10-12 03:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.65 | 126.80 | 45.16 | 337.43 | -9.07 | 319.98 | -77.96 | 100.48 | 0.9822 | 349.9 | 48.0 | |
|
previous
or next observation for the same group /

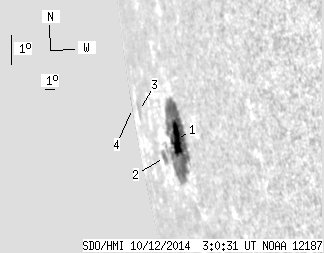

back to the solar disc SDO HMI 2014-10-12 03:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.65 | 114.80 | 45.16 | 280.68 | -9.04 | 320.95 | -76.99 | 100.58 | 0.9798 | 387.8 | 112.3 | |
| 0.00 | 5.87 | 0.00 | 18.09 | -9.85 | 318.44 | -79.50 | 101.05 | 0.9878 | -404.0 | -352.2 | |
| 0.00 | 5.78 | 0.00 | 32.12 | -8.86 | 314.23 | -83.71 | 99.52 | 0.9962 | -183.0 | -166.7 | |
| 0.00 | 0.35 | 0.00 | 6.54 | -9.18 | 310.65 | -87.29 | 99.42 | 0.9997 | -76.0 | -104.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
