SDO HMI 2014-10-12 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.30 | 0.00 | 9.72 | 13.89 | 56.83 | 19.44 | 293.94 | 0.3543 | 211.5 | 196.8 | |
|
previous
or next observation for the same group /

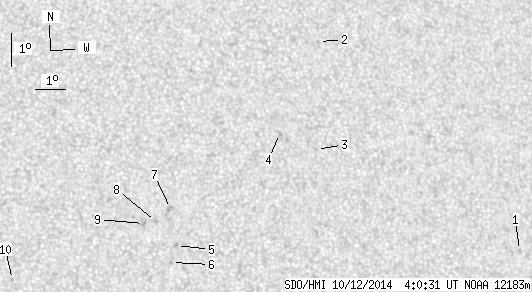

back to the solar disc SDO HMI 2014-10-12 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.80 | 11.94 | 66.69 | 29.30 | 283.53 | 0.4944 | -709.0 | -580.9 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 18.59 | 60.62 | 23.23 | 300.99 | 0.4379 | -553.0 | -415.3 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 15.31 | 60.12 | 22.73 | 294.27 | 0.4106 | -730.0 | -597.8 | |
| 0.00 | 2.71 | 0.00 | 1.46 | 15.84 | 58.94 | 21.55 | 296.53 | 0.3966 | -632.0 | -645.3 | |
| 0.00 | 2.10 | 0.00 | 1.10 | 12.58 | 55.26 | 17.87 | 291.51 | 0.3233 | 812.0 | 608.9 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 12.07 | 55.06 | 17.67 | 290.18 | 0.3176 | 798.0 | 619.8 | |
| 0.00 | 3.50 | 0.00 | 1.84 | 13.70 | 55.15 | 17.76 | 294.86 | 0.3280 | 763.0 | 600.8 | |
| 0.00 | 1.93 | 0.00 | 1.01 | 13.32 | 54.64 | 17.25 | 294.35 | 0.3181 | 772.0 | 612.0 | |
| 0.00 | 2.36 | 0.00 | 1.23 | 13.28 | 54.25 | 16.86 | 294.65 | 0.3119 | 871.0 | 726.9 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 11.71 | 50.00 | 12.61 | 295.14 | 0.2372 | 723.0 | 538.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
