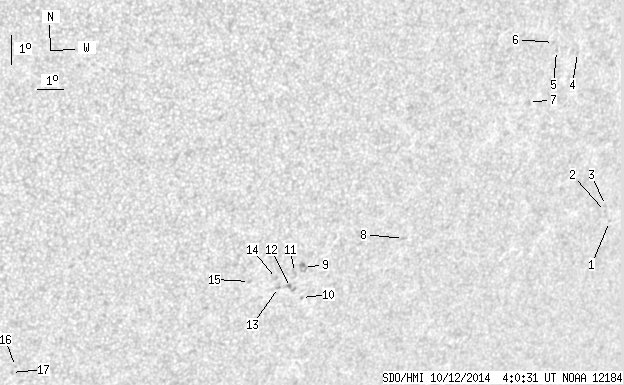

SDO HMI 2014-10-12 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 30.11 | 0.00 | 20.54 | -22.78 | 69.97 | 32.58 | 226.39 | 0.6873 | -57.2 | -247.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-12 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.62 | -22.75 | 80.46 | 43.06 | 234.09 | 0.7797 | 402.0 | 289.3 | |
| 0.00 | 0.70 | 0.00 | 0.55 | -22.38 | 80.14 | 42.75 | 234.32 | 0.7750 | 620.0 | 495.2 | |
| 0.00 | 1.14 | 0.00 | 0.89 | -22.18 | 80.06 | 42.67 | 234.51 | 0.7731 | 607.0 | 462.4 | |
| 0.00 | 0.79 | 0.00 | 0.56 | -16.92 | 77.23 | 39.84 | 239.06 | 0.7169 | 545.0 | 466.0 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -16.80 | 76.35 | 38.95 | 238.67 | 0.7069 | 681.0 | 592.8 | |
| 0.00 | 0.96 | 0.00 | 0.67 | -16.53 | 76.16 | 38.77 | 238.90 | 0.7034 | 625.0 | 530.3 | |
| 0.00 | 2.01 | 0.00 | 1.41 | -18.44 | 75.63 | 38.24 | 236.17 | 0.7092 | 696.0 | 590.2 | |
| 0.00 | 1.84 | 0.00 | 1.27 | -22.70 | 71.83 | 34.44 | 228.32 | 0.7009 | 624.0 | 479.9 | |
| 0.00 | 6.04 | 0.00 | 4.04 | -23.46 | 68.17 | 30.78 | 224.39 | 0.6734 | -780.0 | -679.5 | |
| 0.00 | 1.14 | 0.00 | 0.77 | -24.51 | 68.37 | 30.98 | 223.40 | 0.6840 | -447.0 | -422.8 | |
| 0.00 | 2.71 | 0.00 | 1.81 | -23.62 | 67.87 | 30.48 | 223.94 | 0.6720 | -745.0 | -669.6 | |
| 0.00 | 4.55 | 0.00 | 3.05 | -24.13 | 67.85 | 30.46 | 223.35 | 0.6762 | -605.0 | -580.6 | |
| 0.00 | 1.31 | 0.00 | 0.88 | -24.11 | 67.39 | 29.99 | 222.96 | 0.6719 | -730.0 | -653.1 | |
| 0.00 | 1.49 | 0.00 | 0.99 | -23.79 | 67.23 | 29.84 | 223.17 | 0.6677 | -652.0 | -463.8 | |
| 0.00 | 1.66 | 0.00 | 1.09 | -23.83 | 66.22 | 28.83 | 222.18 | 0.6593 | -568.0 | -494.2 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -26.40 | 58.24 | 20.85 | 210.97 | 0.6216 | -605.0 | -515.0 | |
| 0.00 | 1.40 | 0.00 | 0.89 | -26.61 | 58.13 | 20.74 | 210.66 | 0.6232 | -640.0 | -571.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
