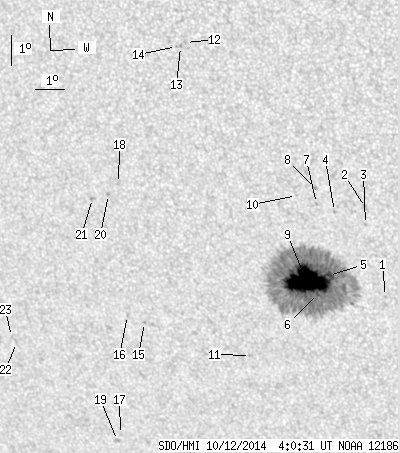

SDO HMI 2014-10-12 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.99 | 477.02 | 42.50 | 282.06 | -20.61 | 17.58 | -19.82 | 144.44 | 0.5475 | 836.7 | 332.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-12 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.66 | -21.08 | 20.37 | -17.03 | 148.87 | 0.5305 | -236.0 | -216.8 | |
| 0.00 | 2.45 | 0.00 | 1.40 | -18.13 | 20.03 | -17.36 | 145.05 | 0.4970 | 937.0 | 665.9 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -18.69 | 19.97 | -17.42 | 145.63 | 0.5044 | 757.0 | 577.8 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -18.30 | 18.99 | -18.41 | 143.68 | 0.5082 | 588.0 | 549.5 | |
| 0.79 | 452.59 | 0.46 | 267.23 | -20.44 | 18.53 | -18.86 | 145.53 | 0.5374 | 1402.7 | 370.5 | |
| 3.24 | -5.00 | 1.92 | -5.00 | -21.06 | 18.07 | -19.32 | 145.59 | 0.5485 | 875.2 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -18.06 | 18.41 | -18.98 | 142.55 | 0.5105 | 498.0 | 499.9 | |
| 0.00 | 1.31 | 0.00 | 0.75 | -17.57 | 18.44 | -18.96 | 141.96 | 0.5046 | -812.0 | -672.1 | |
| 67.96 | -5.00 | 40.12 | -5.00 | -20.63 | 17.76 | -19.64 | 144.68 | 0.5461 | 1394.1 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -17.82 | 17.77 | -19.62 | 141.33 | 0.5136 | -710.0 | -670.7 | |
| 0.00 | 1.31 | 0.00 | 0.81 | -23.26 | 15.41 | -21.98 | 144.56 | 0.5952 | 608.0 | 538.8 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -13.03 | 14.59 | -22.80 | 130.24 | 0.4965 | -723.0 | -586.6 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -13.16 | 14.41 | -22.98 | 130.23 | 0.4999 | -790.0 | -699.8 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -13.17 | 14.28 | -23.11 | 130.07 | 0.5015 | -619.0 | -546.0 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -22.30 | 11.83 | -25.56 | 139.40 | 0.6158 | -776.0 | -693.9 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -22.09 | 11.26 | -26.13 | 138.55 | 0.6189 | -768.0 | -593.8 | |
| 0.00 | 0.96 | 0.00 | 0.64 | -26.26 | 10.05 | -27.35 | 141.85 | 0.6692 | -651.0 | -542.7 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -17.68 | 11.72 | -25.67 | 133.61 | 0.5722 | -679.0 | -595.2 | |
| 0.00 | 2.36 | 0.00 | 1.58 | -26.48 | 9.88 | -27.52 | 141.91 | 0.6727 | -653.0 | -537.7 | |
| 0.00 | 1.58 | 0.00 | 0.96 | -18.06 | 11.31 | -26.08 | 133.67 | 0.5799 | -718.0 | -598.0 | |
| 0.00 | 1.66 | 0.00 | 1.02 | -18.22 | 10.72 | -26.67 | 133.25 | 0.5875 | -746.0 | -590.2 | |
| 0.00 | 1.93 | 0.00 | 1.28 | -23.24 | 6.90 | -30.49 | 135.61 | 0.6689 | -422.0 | -385.2 | |
| 0.00 | 0.44 | 0.00 | 0.29 | -23.04 | 6.76 | -30.63 | 135.26 | 0.6684 | -615.0 | -508.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
