SDO HMI 2014-10-12 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.68 | 129.87 | 52.68 | 321.64 | -9.11 | 320.22 | -77.17 | 100.64 | 0.9799 | 328.9 | 41.7 | |
|
previous
or next observation for the same group /

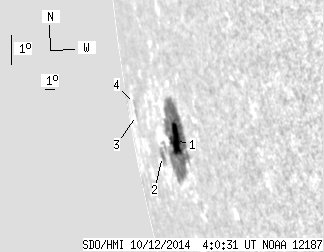

back to the solar disc SDO HMI 2014-10-12 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.68 | 118.40 | 52.68 | 277.62 | -9.08 | 320.90 | -76.49 | 100.70 | 0.9781 | 366.1 | 103.5 | |
| 0.00 | 6.83 | 0.00 | 19.90 | -9.83 | 318.41 | -78.99 | 101.10 | 0.9864 | -437.0 | -342.5 | |
| 0.00 | 2.36 | 0.00 | 12.29 | -9.05 | 313.95 | -83.44 | 99.74 | 0.9959 | -231.0 | -183.3 | |
| 0.00 | 2.28 | 0.00 | 11.83 | -8.68 | 313.91 | -83.48 | 99.37 | 0.9959 | -302.0 | -252.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
