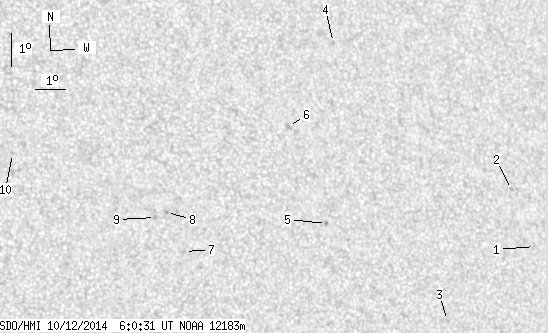

SDO HMI 2014-10-12 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.01 | 0.00 | 7.63 | 13.80 | 59.25 | 22.95 | 291.45 | 0.4078 | 56.4 | -52.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-12 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.66 | 11.77 | 66.95 | 30.66 | 282.82 | 0.5140 | -564.0 | -470.5 | |
| 0.00 | 1.31 | 0.00 | 0.76 | 13.52 | 66.37 | 30.07 | 286.40 | 0.5099 | -640.0 | -533.9 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 9.71 | 63.70 | 27.40 | 279.39 | 0.4617 | -664.0 | -542.0 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 18.27 | 60.83 | 24.53 | 299.20 | 0.4535 | -727.0 | -644.7 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 12.80 | 59.90 | 23.60 | 287.85 | 0.4119 | 755.0 | 685.8 | |
| 0.00 | 3.33 | 0.00 | 1.81 | 15.78 | 58.95 | 22.65 | 295.45 | 0.4122 | -893.0 | -647.8 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 12.14 | 55.17 | 18.87 | 289.37 | 0.3366 | 661.0 | 580.8 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 13.34 | 54.68 | 18.38 | 293.21 | 0.3353 | 987.0 | 850.5 | |
| 0.00 | 1.75 | 0.00 | 0.92 | 13.20 | 54.31 | 18.01 | 293.19 | 0.3290 | 1001.0 | 793.9 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 15.26 | 49.87 | 13.57 | 305.66 | 0.2799 | 648.0 | 437.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
