SDO HMI 2014-10-12 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.16 | 0.00 | 5.72 | -16.18 | 53.17 | 16.87 | 216.16 | 0.4741 | 104.2 | 65.3 | |
|
previous
or next observation for the same group /

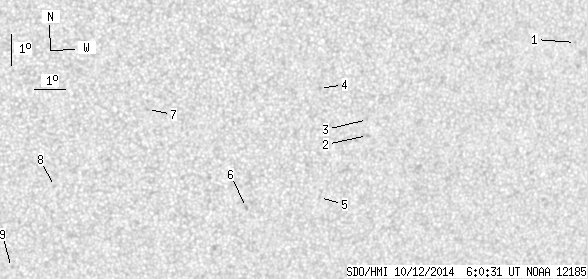

back to the solar disc SDO HMI 2014-10-12 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.46 | -13.12 | 62.96 | 26.66 | 233.97 | 0.5425 | 724.0 | 587.0 | |
| 0.00 | 1.40 | 0.00 | 0.80 | -15.78 | 56.24 | 19.94 | 221.87 | 0.4938 | 732.0 | 608.9 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -15.27 | 56.19 | 19.89 | 222.52 | 0.4876 | 804.0 | 639.4 | |
| 0.00 | 1.66 | 0.00 | 0.93 | -14.21 | 54.52 | 18.22 | 221.58 | 0.4587 | -719.0 | -607.5 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -17.74 | 54.85 | 18.56 | 217.25 | 0.5028 | 481.0 | 329.1 | |
| 0.00 | 1.75 | 0.00 | 0.99 | -17.99 | 52.47 | 16.18 | 213.27 | 0.4850 | 818.0 | 567.1 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -14.71 | 49.04 | 12.74 | 211.18 | 0.4138 | -874.0 | -738.3 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -17.13 | 46.22 | 9.92 | 202.75 | 0.4276 | -526.0 | -450.9 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -19.78 | 44.99 | 8.69 | 198.10 | 0.4595 | -502.0 | -504.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
