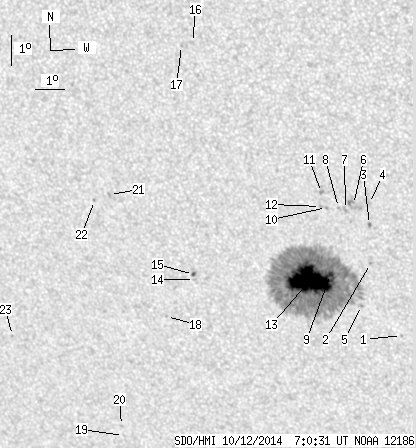

SDO HMI 2014-10-12 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.73 | 499.57 | 39.00 | 291.99 | -20.54 | 17.69 | -18.06 | 146.78 | 0.5319 | 863.7 | 350.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-12 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.46 | -22.43 | 20.62 | -15.13 | 153.01 | 0.5338 | -307.0 | -422.3 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -20.03 | 19.85 | -15.90 | 149.45 | 0.5085 | 650.0 | 552.6 | |
| 0.00 | 1.66 | 0.00 | 0.95 | -18.73 | 19.94 | -15.80 | 148.19 | 0.4913 | 465.0 | 424.2 | |
| 0.00 | 1.93 | 0.00 | 1.09 | -18.04 | 20.01 | -15.74 | 147.50 | 0.4819 | 491.0 | 340.9 | |
| 0.00 | 1.58 | 0.00 | 0.92 | -21.45 | 19.39 | -16.36 | 150.22 | 0.5299 | 568.0 | 460.9 | |
| 0.00 | 7.71 | 0.00 | 4.37 | -18.09 | 19.48 | -16.27 | 146.70 | 0.4869 | 922.0 | 714.3 | |
| 0.00 | 2.45 | 0.00 | 1.39 | -18.26 | 19.20 | -16.55 | 146.45 | 0.4914 | 326.0 | 449.9 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -18.20 | 18.98 | -16.77 | 146.03 | 0.4926 | 362.0 | 417.7 | |
| 2.36 | 464.68 | 1.37 | 271.69 | -20.44 | 18.47 | -17.28 | 147.79 | 0.5243 | 1461.9 | 373.0 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -18.22 | 18.58 | -17.17 | 145.43 | 0.4961 | 37.0 | 189.2 | |
| 0.00 | 1.93 | 0.00 | 1.09 | -17.73 | 18.47 | -17.28 | 144.66 | 0.4912 | -859.0 | -633.0 | |
| 0.00 | 1.66 | 0.00 | 0.95 | -18.19 | 18.39 | -17.36 | 145.09 | 0.4975 | 458.0 | 347.3 | |
| 63.58 | -9.00 | 37.16 | -9.00 | -20.66 | 17.74 | -18.01 | 146.97 | 0.5329 | 1408.4 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -20.78 | 13.80 | -21.95 | 141.82 | 0.5676 | -182.0 | -153.0 | |
| 0.79 | 1.93 | 0.47 | 1.16 | -20.61 | 13.79 | -21.96 | 141.62 | 0.5659 | -681.4 | -506.8 | |
| 0.00 | 1.66 | 0.00 | 0.94 | -13.04 | 14.68 | -21.07 | 132.46 | 0.4768 | -778.0 | -622.1 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -13.15 | 14.30 | -21.45 | 132.14 | 0.4821 | -737.0 | -547.8 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -22.07 | 12.61 | -23.14 | 141.87 | 0.5919 | -660.0 | -564.0 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -26.30 | 10.19 | -25.56 | 143.68 | 0.6553 | -420.0 | -351.4 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -25.94 | 10.20 | -25.55 | 143.33 | 0.6517 | -111.0 | -204.6 | |
| 0.00 | 1.49 | 0.00 | 0.89 | -18.07 | 11.28 | -24.47 | 135.45 | 0.5635 | -756.0 | -648.9 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -18.29 | 10.72 | -25.03 | 135.10 | 0.5713 | -616.0 | -460.1 | |
| 0.00 | 1.14 | 0.00 | 0.74 | -23.00 | 6.86 | -28.89 | 136.81 | 0.6521 | -369.0 | -424.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
