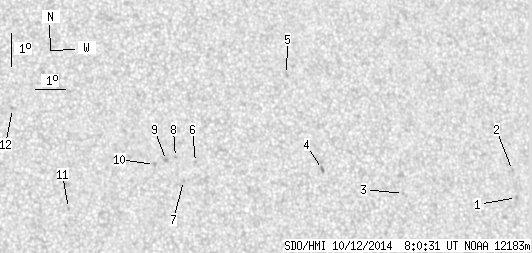

SDO HMI 2014-10-12 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.84 | 0.00 | 8.63 | 13.13 | 58.24 | 23.04 | 289.73 | 0.4048 | 301.9 | 235.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-12 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.75 | 0.00 | 1.02 | 11.66 | 66.49 | 31.28 | 282.48 | 0.5229 | -690.0 | -556.8 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 12.48 | 66.45 | 31.25 | 284.04 | 0.5241 | -730.0 | -639.3 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 11.99 | 62.55 | 27.35 | 284.31 | 0.4658 | -767.0 | -571.7 | |
| 0.00 | 2.28 | 0.00 | 1.25 | 12.84 | 59.88 | 24.68 | 287.36 | 0.4283 | 778.0 | 639.2 | |
| 0.00 | 1.75 | 0.00 | 0.96 | 15.75 | 59.00 | 23.80 | 294.49 | 0.4286 | -750.0 | -613.0 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 13.22 | 55.69 | 20.49 | 291.03 | 0.3666 | 694.0 | 510.1 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 12.69 | 55.25 | 20.05 | 289.98 | 0.3574 | 826.0 | 674.2 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 13.39 | 55.05 | 19.85 | 292.02 | 0.3578 | 747.0 | 640.5 | |
| 0.00 | 1.75 | 0.00 | 0.93 | 13.31 | 54.75 | 19.55 | 292.08 | 0.3529 | 862.0 | 762.8 | |
| 0.00 | 1.49 | 0.00 | 0.79 | 13.21 | 54.35 | 19.15 | 292.15 | 0.3463 | 1025.0 | 833.6 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 11.97 | 51.49 | 16.29 | 291.31 | 0.2958 | 754.0 | 606.6 | |
| 0.00 | 0.61 | 0.00 | 0.32 | 15.04 | 49.91 | 14.71 | 303.01 | 0.2937 | 874.0 | 666.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
