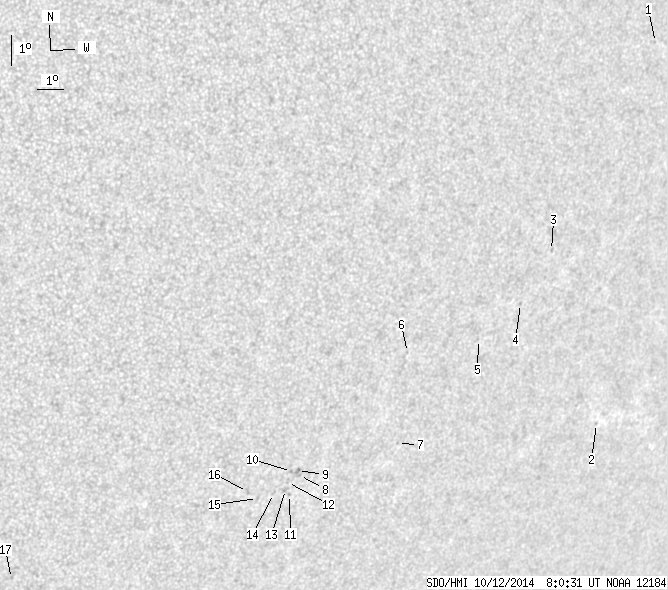

SDO HMI 2014-10-12 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.35 | 0.00 | 14.83 | -22.49 | 69.54 | 34.34 | 228.24 | 0.7015 | -191.3 | -247.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-12 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.32 | -10.34 | 79.44 | 44.23 | 249.76 | 0.7338 | 538.0 | 511.0 | |
| 0.00 | 0.88 | 0.00 | 0.72 | -22.70 | 80.47 | 45.27 | 235.38 | 0.7986 | 430.0 | 402.5 | |
| 0.00 | 1.31 | 0.00 | 0.95 | -16.69 | 76.47 | 41.26 | 240.20 | 0.7303 | 352.0 | 437.1 | |
| 0.00 | 1.05 | 0.00 | 0.76 | -18.35 | 75.63 | 40.43 | 237.68 | 0.7307 | 147.0 | 316.5 | |
| 0.00 | 1.05 | 0.00 | 0.75 | -19.43 | 74.20 | 39.00 | 235.48 | 0.7227 | 563.0 | 469.1 | |
| 0.00 | 1.05 | 0.00 | 0.72 | -19.66 | 71.41 | 36.21 | 233.28 | 0.6963 | -486.0 | -383.1 | |
| 0.00 | 0.61 | 0.00 | 0.44 | -22.74 | 71.90 | 36.69 | 229.99 | 0.7218 | 591.0 | 519.3 | |
| 0.00 | 0.70 | 0.00 | 0.48 | -23.59 | 68.25 | 33.05 | 226.21 | 0.6947 | -551.0 | -532.4 | |
| 0.00 | 2.10 | 0.00 | 1.44 | -23.41 | 68.12 | 32.92 | 226.30 | 0.6921 | -621.0 | -629.6 | |
| 0.00 | 1.31 | 0.00 | 0.90 | -23.43 | 67.89 | 32.69 | 226.09 | 0.6902 | -655.0 | -592.3 | |
| 0.00 | 0.96 | 0.00 | 0.66 | -24.23 | 68.04 | 32.84 | 225.32 | 0.6979 | -497.0 | -440.2 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -23.80 | 67.84 | 32.64 | 225.63 | 0.6927 | -603.0 | -547.7 | |
| 0.00 | 3.24 | 0.00 | 2.22 | -24.04 | 67.83 | 32.63 | 225.35 | 0.6945 | -210.0 | -362.1 | |
| 0.00 | 1.75 | 0.00 | 1.20 | -24.15 | 67.40 | 32.19 | 224.86 | 0.6915 | -485.0 | -518.0 | |
| 0.00 | 1.23 | 0.00 | 0.83 | -24.29 | 66.82 | 31.61 | 224.21 | 0.6875 | -288.0 | -356.0 | |
| 0.00 | 2.10 | 0.00 | 1.42 | -24.02 | 66.36 | 31.15 | 224.11 | 0.6812 | -790.0 | -537.2 | |
| 0.00 | 1.31 | 0.00 | 0.84 | -26.63 | 58.19 | 22.98 | 213.24 | 0.6391 | -687.0 | -606.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
