SDO HMI 2014-10-12 10:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.50 | 0.00 | 9.45 | -22.15 | 69.43 | 35.32 | 229.40 | 0.7090 | -291.2 | -322.2 | |
|
previous
or next observation for the same group /

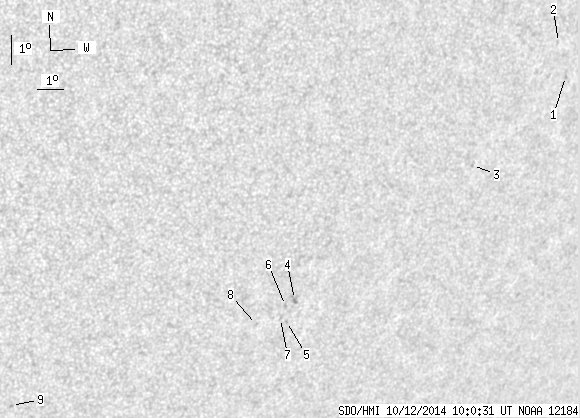

back to the solar disc SDO HMI 2014-10-12 10:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 1.05 | -16.77 | 77.25 | 43.14 | 241.15 | 0.7498 | 387.0 | 435.1 | |
| 0.00 | 1.14 | 0.00 | 0.83 | -15.63 | 76.65 | 42.54 | 242.22 | 0.7381 | 472.0 | 322.1 | |
| 0.00 | 1.05 | 0.00 | 0.76 | -19.43 | 74.09 | 39.99 | 236.10 | 0.7324 | 585.0 | 476.7 | |
| 0.00 | 4.38 | 0.00 | 3.04 | -23.51 | 68.11 | 34.00 | 227.07 | 0.7027 | -818.0 | -681.0 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -24.26 | 68.02 | 33.91 | 226.15 | 0.7075 | -602.0 | -470.4 | |
| 0.00 | 1.84 | 0.00 | 1.27 | -23.70 | 67.81 | 33.70 | 226.62 | 0.7014 | -791.0 | -588.9 | |
| 0.00 | 0.79 | 0.00 | 0.55 | -24.14 | 67.74 | 33.63 | 226.07 | 0.7042 | -486.0 | -423.7 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -24.29 | 66.84 | 32.74 | 225.17 | 0.6974 | -686.0 | -584.7 | |
| 0.00 | 1.14 | 0.00 | 0.74 | -26.65 | 58.19 | 24.08 | 214.43 | 0.6474 | -682.0 | -595.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
