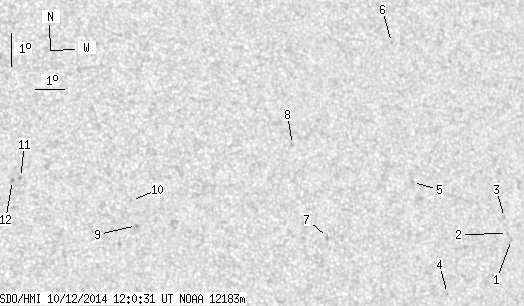

SDO HMI 2014-10-12 12:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.07 | 0.00 | 8.42 | 13.96 | 59.34 | 26.32 | 290.02 | 0.4574 | -51.8 | 8.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-12 12:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.57 | 12.43 | 66.46 | 33.45 | 283.38 | 0.5554 | -680.0 | -608.3 | |
| 0.00 | 0.79 | 0.00 | 0.47 | 12.62 | 66.34 | 33.33 | 283.75 | 0.5541 | -663.0 | -547.8 | |
| 0.00 | 1.05 | 0.00 | 0.62 | 13.10 | 66.30 | 33.29 | 284.63 | 0.5547 | -702.0 | -575.9 | |
| 0.00 | 1.23 | 0.00 | 0.71 | 10.94 | 63.95 | 30.93 | 281.19 | 0.5166 | -633.0 | -427.1 | |
| 0.00 | 1.40 | 0.00 | 0.81 | 14.34 | 63.16 | 30.14 | 287.98 | 0.5135 | -697.0 | -642.8 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 18.62 | 63.14 | 30.13 | 295.91 | 0.5309 | -590.0 | -444.8 | |
| 0.00 | 2.19 | 0.00 | 1.22 | 12.83 | 59.97 | 26.96 | 286.29 | 0.4624 | 778.0 | 528.1 | |
| 0.00 | 1.40 | 0.00 | 0.78 | 15.69 | 59.13 | 26.12 | 292.76 | 0.4615 | -840.0 | -580.8 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 13.47 | 53.62 | 20.60 | 291.61 | 0.3697 | 906.0 | 757.9 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 14.23 | 53.52 | 20.51 | 293.63 | 0.3723 | 723.0 | 547.2 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 15.04 | 49.97 | 16.96 | 299.70 | 0.3257 | 845.0 | 716.2 | |
| 0.00 | 1.58 | 0.00 | 0.82 | 14.96 | 49.71 | 16.69 | 299.83 | 0.3213 | 932.0 | 802.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
