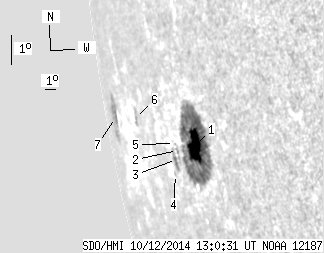

SDO HMI 2014-10-12 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.80 | 204.95 | 51.80 | 415.26 | -9.10 | 317.98 | -74.48 | 101.05 | 0.9671 | 379.8 | 102.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-12 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.80 | 168.63 | 51.80 | 283.98 | -9.01 | 320.91 | -71.56 | 101.38 | 0.9570 | 431.3 | 109.8 | |
| 0.00 | 2.10 | 0.00 | 3.97 | -9.33 | 319.00 | -73.47 | 101.40 | 0.9662 | 191.0 | 85.5 | |
| 0.00 | 8.75 | 0.00 | 16.97 | -9.63 | 318.71 | -73.75 | 101.67 | 0.9677 | -346.0 | -270.3 | |
| 0.00 | 0.70 | 0.00 | 1.40 | -10.14 | 318.28 | -74.18 | 102.12 | 0.9698 | -268.0 | -294.6 | |
| 0.00 | 0.53 | 0.00 | 1.00 | -9.13 | 318.78 | -73.68 | 101.17 | 0.9670 | 27.0 | 85.2 | |
| 0.00 | 4.38 | 0.00 | 12.00 | -8.84 | 313.95 | -78.51 | 100.16 | 0.9846 | -418.0 | -335.0 | |
| 0.00 | 19.86 | 0.00 | 95.94 | -9.29 | 309.64 | -82.82 | 100.05 | 0.9949 | 424.0 | 212.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
