SDO HMI 2014-10-12 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.75 | 0.00 | 11.51 | -21.84 | 70.63 | 38.72 | 232.28 | 0.7362 | -81.2 | -123.3 | |
|
previous
or next observation for the same group /

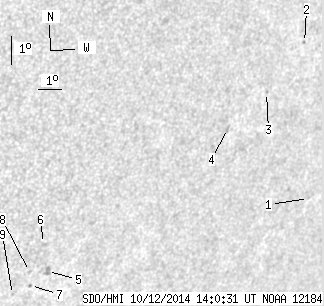

back to the solar disc SDO HMI 2014-10-12 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.66 | -21.96 | 78.82 | 46.90 | 237.06 | 0.8091 | 166.0 | 188.2 | |
| 0.00 | 0.96 | 0.00 | 0.74 | -16.68 | 76.72 | 44.80 | 242.12 | 0.7659 | 595.0 | 521.5 | |
| 0.00 | 1.22 | 0.00 | 0.93 | -18.20 | 75.51 | 43.60 | 239.68 | 0.7612 | 379.0 | 406.1 | |
| 0.00 | 2.54 | 0.00 | 1.91 | -19.28 | 74.16 | 42.25 | 237.65 | 0.7535 | 632.0 | 531.9 | |
| 0.00 | 4.81 | 0.00 | 3.44 | -23.62 | 68.06 | 36.14 | 228.60 | 0.7228 | -787.0 | -620.7 | |
| 0.00 | 2.36 | 0.00 | 1.66 | -22.64 | 67.59 | 35.68 | 229.37 | 0.7116 | -92.0 | -79.6 | |
| 0.00 | 1.14 | 0.00 | 0.81 | -24.07 | 67.51 | 35.60 | 227.69 | 0.7210 | -587.0 | -490.1 | |
| 0.00 | 1.14 | 0.00 | 0.80 | -23.57 | 67.32 | 35.40 | 228.10 | 0.7157 | -448.0 | -477.5 | |
| 0.00 | 0.79 | 0.00 | 0.56 | -24.33 | 66.87 | 34.96 | 226.90 | 0.7173 | -589.0 | -489.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
