SDO HMI 2014-10-12 15:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.84 | 0.00 | 8.39 | 13.81 | 58.70 | 27.33 | 288.84 | 0.4715 | 95.4 | 135.4 | |
|
previous
or next observation for the same group /

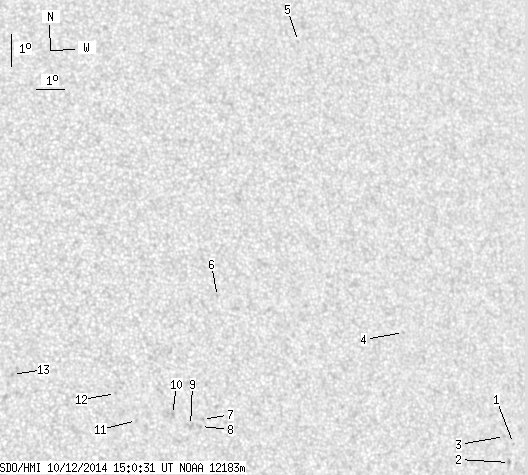

back to the solar disc SDO HMI 2014-10-12 15:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.53 | 12.10 | 66.76 | 35.40 | 282.39 | 0.5821 | -562.0 | -492.7 | |
| 0.00 | 2.01 | 0.00 | 1.22 | 11.54 | 66.53 | 35.16 | 281.47 | 0.5779 | -720.0 | -564.0 | |
| 0.00 | 0.96 | 0.00 | 0.58 | 12.33 | 66.46 | 35.09 | 282.84 | 0.5783 | -703.0 | -538.3 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 15.67 | 63.27 | 31.91 | 289.72 | 0.5427 | -621.0 | -484.3 | |
| 0.00 | 0.44 | 0.00 | 0.26 | 24.81 | 61.40 | 30.03 | 306.36 | 0.5663 | -689.0 | -597.2 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 17.09 | 56.88 | 25.51 | 296.05 | 0.4602 | -710.0 | -585.6 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 13.40 | 55.89 | 24.52 | 288.75 | 0.4282 | 547.0 | 503.2 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 13.19 | 55.80 | 24.43 | 288.33 | 0.4260 | 742.0 | 635.1 | |
| 0.00 | 3.06 | 0.00 | 1.67 | 13.23 | 55.47 | 24.10 | 288.62 | 0.4212 | 752.0 | 648.1 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 13.59 | 54.90 | 23.53 | 289.80 | 0.4142 | 720.0 | 644.7 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 13.46 | 53.68 | 22.32 | 290.30 | 0.3954 | 862.0 | 664.8 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 14.30 | 53.07 | 21.70 | 292.81 | 0.3904 | 642.0 | 592.6 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 15.00 | 49.75 | 18.38 | 297.81 | 0.3459 | 980.0 | 795.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
