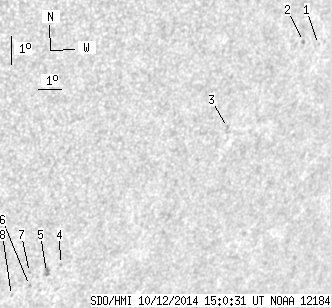

SDO HMI 2014-10-12 15:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.45 | 0.00 | 8.37 | -22.26 | 69.82 | 38.45 | 231.66 | 0.7369 | -183.1 | -292.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-12 15:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.21 | -16.81 | 77.45 | 46.09 | 242.59 | 0.7791 | 369.0 | 421.7 | |
| 0.00 | 1.22 | 0.00 | 0.95 | -16.66 | 76.73 | 45.37 | 242.43 | 0.7714 | 583.0 | 490.5 | |
| 0.00 | 1.31 | 0.00 | 0.99 | -19.25 | 74.21 | 42.84 | 238.02 | 0.7591 | 634.0 | 570.4 | |
| 0.00 | 1.05 | 0.00 | 0.76 | -23.42 | 68.54 | 37.17 | 229.57 | 0.7307 | -561.0 | -498.8 | |
| 0.00 | 4.55 | 0.00 | 3.27 | -23.66 | 68.05 | 36.68 | 228.95 | 0.7279 | -776.0 | -627.1 | |
| 0.00 | 1.14 | 0.00 | 0.82 | -24.06 | 67.49 | 36.12 | 228.08 | 0.7257 | -526.0 | -540.2 | |
| 0.00 | 0.70 | 0.00 | 0.50 | -23.61 | 67.34 | 35.97 | 228.48 | 0.7212 | -658.0 | -609.0 | |
| 0.00 | 1.22 | 0.00 | 0.87 | -24.37 | 66.85 | 35.49 | 227.27 | 0.7222 | -530.0 | -447.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
