SDO HMI 2014-10-12 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.04 | 498.16 | 45.60 | 284.31 | -20.62 | 17.56 | -13.26 | 154.36 | 0.4973 | 892.5 | 353.2 | |
|
previous
or next observation for the same group /

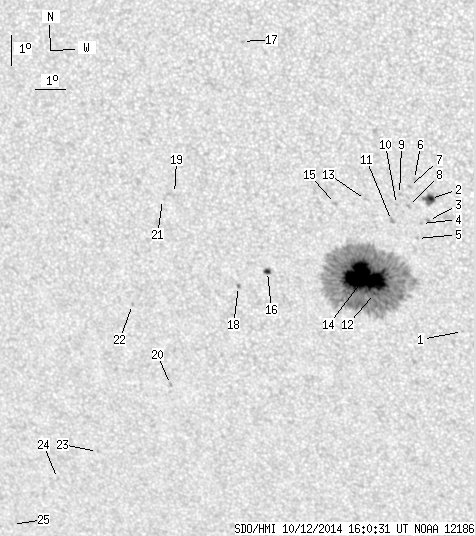

back to the solar disc SDO HMI 2014-10-12 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.40 | -22.45 | 20.73 | -10.08 | 161.21 | 0.5045 | -656.0 | -518.4 | |
| 4.37 | 10.32 | 2.42 | 5.71 | -18.03 | 20.00 | -10.81 | 156.29 | 0.4455 | 1053.7 | 774.8 | |
| 0.00 | 1.75 | 0.00 | 0.97 | -18.75 | 19.89 | -10.93 | 156.75 | 0.4565 | 813.0 | 609.5 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -18.85 | 19.66 | -11.16 | 156.40 | 0.4594 | 825.0 | 701.4 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -19.35 | 19.49 | -11.32 | 156.55 | 0.4675 | 876.0 | 742.1 | |
| 0.00 | 1.66 | 0.00 | 0.92 | -17.41 | 19.53 | -11.29 | 154.77 | 0.4399 | 805.0 | 624.3 | |
| 0.00 | 1.66 | 0.00 | 0.92 | -17.65 | 19.35 | -11.46 | 154.66 | 0.4444 | 455.0 | 352.2 | |
| 0.00 | 1.31 | 0.00 | 0.73 | -18.30 | 19.28 | -11.54 | 155.17 | 0.4541 | 781.0 | 553.7 | |
| 0.00 | 1.40 | 0.00 | 0.78 | -17.92 | 19.01 | -11.80 | 154.29 | 0.4504 | -808.0 | -502.9 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -18.25 | 18.89 | -11.92 | 154.39 | 0.4558 | 517.0 | 492.8 | |
| 0.00 | 2.62 | 0.00 | 1.47 | -18.78 | 18.69 | -12.12 | 154.55 | 0.4645 | 886.0 | 741.6 | |
| 1.05 | 456.89 | 0.60 | 260.70 | -21.23 | 17.94 | -12.88 | 155.50 | 0.5030 | 727.4 | 374.0 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -18.10 | 17.90 | -12.91 | 152.43 | 0.4607 | 522.0 | 340.0 | |
| 72.17 | -12.00 | 41.16 | -12.00 | -20.69 | 17.66 | -13.16 | 154.55 | 0.4976 | 1378.3 | 999999 | |
| 0.00 | 2.19 | 0.00 | 1.23 | -18.26 | 16.92 | -13.89 | 150.85 | 0.4700 | -905.0 | -677.0 | |
| 2.45 | 4.20 | 1.42 | 2.43 | -20.58 | 14.46 | -16.35 | 149.32 | 0.5187 | 768.8 | 509.9 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -13.12 | 14.32 | -16.49 | 139.54 | 0.4278 | -729.0 | -636.1 | |
| 0.00 | 1.75 | 0.00 | 1.02 | -21.12 | 13.43 | -17.39 | 148.34 | 0.5333 | -858.0 | -750.7 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -18.09 | 11.65 | -19.17 | 142.28 | 0.5122 | -13.0 | -25.8 | |
| 0.00 | 1.66 | 0.00 | 1.02 | -24.56 | 10.59 | -20.22 | 148.01 | 0.5957 | -775.0 | -664.6 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -18.31 | 11.22 | -19.59 | 141.94 | 0.5185 | -573.0 | -646.8 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -21.86 | 9.71 | -21.10 | 144.09 | 0.5720 | -652.0 | -528.2 | |
| 0.00 | 0.96 | 0.00 | 0.62 | -27.05 | 7.49 | -23.32 | 146.78 | 0.6459 | -624.0 | -443.6 | |
| 0.00 | 1.22 | 0.00 | 0.81 | -28.09 | 5.76 | -25.05 | 145.94 | 0.6693 | -757.0 | -537.6 | |
| 0.00 | 0.87 | 0.00 | 0.61 | -29.88 | 3.55 | -27.26 | 145.44 | 0.7025 | -499.0 | -408.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
