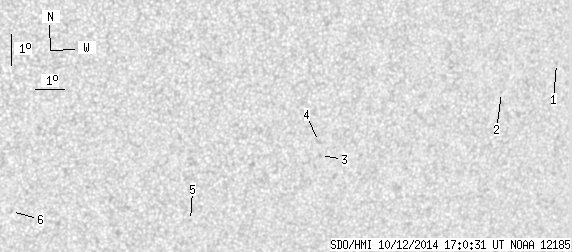

SDO HMI 2014-10-12 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.09 | 0.00 | 4.25 | -15.58 | 56.28 | 26.02 | 228.93 | 0.5601 | 457.0 | 393.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-12 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.73 | -13.31 | 64.55 | 34.28 | 240.21 | 0.6339 | 550.0 | 379.4 | |
| 0.00 | 0.61 | 0.00 | 0.38 | -14.12 | 62.64 | 32.38 | 237.66 | 0.6170 | 641.0 | 570.4 | |
| 0.00 | 1.14 | 0.00 | 0.68 | -15.79 | 56.45 | 26.19 | 229.59 | 0.5600 | 839.0 | 723.7 | |
| 0.00 | 2.01 | 0.00 | 1.20 | -15.33 | 56.32 | 26.06 | 230.10 | 0.5544 | 672.0 | 600.0 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -17.70 | 52.26 | 21.99 | 222.06 | 0.5347 | 674.0 | 462.8 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -17.18 | 46.26 | 16.00 | 213.98 | 0.4729 | -634.0 | -581.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
