SDO HMI 2014-10-12 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.17 | 515.77 | 41.00 | 294.10 | -20.75 | 17.47 | -12.79 | 155.28 | 0.4959 | 877.3 | 355.8 | |
|
previous
or next observation for the same group /

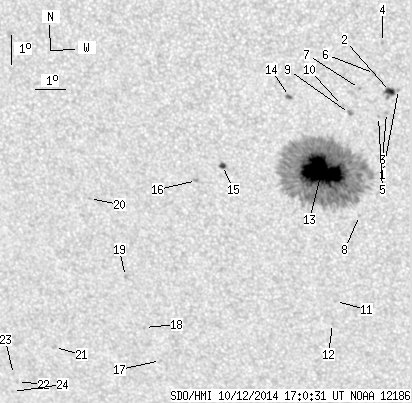

back to the solar disc SDO HMI 2014-10-12 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.63 | -17.94 | 20.32 | -9.94 | 157.93 | 0.4390 | 784.0 | 765.0 | |
| 4.29 | 7.78 | 2.36 | 4.30 | -18.01 | 20.06 | -10.20 | 157.47 | 0.4416 | 1033.0 | 769.8 | |
| 0.00 | 1.66 | 0.00 | 0.92 | -18.71 | 19.89 | -10.38 | 157.76 | 0.4526 | 535.0 | 486.6 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -16.42 | 19.90 | -10.37 | 155.60 | 0.4197 | 804.0 | 581.5 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -18.84 | 19.62 | -10.64 | 157.37 | 0.4561 | 727.0 | 553.6 | |
| 0.00 | 1.84 | 0.00 | 1.01 | -17.43 | 19.58 | -10.68 | 155.98 | 0.4362 | 870.0 | 697.6 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -17.93 | 19.07 | -11.19 | 155.47 | 0.4466 | -720.0 | -584.2 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -22.17 | 18.75 | -11.51 | 158.58 | 0.5080 | -685.0 | -548.8 | |
| 0.00 | 2.19 | 0.00 | 1.22 | -18.76 | 18.69 | -11.57 | 155.55 | 0.4607 | 943.0 | 825.4 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -18.50 | 18.49 | -11.78 | 154.92 | 0.4584 | 634.0 | 542.5 | |
| 0.00 | 1.22 | 0.00 | 0.73 | -25.16 | 17.67 | -12.60 | 159.06 | 0.5545 | -534.0 | -422.9 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -25.94 | 17.48 | -12.78 | 159.33 | 0.5659 | 674.0 | 563.3 | |
| 64.73 | 475.66 | 36.84 | 270.83 | -20.71 | 17.63 | -12.63 | 155.45 | 0.4945 | 1426.2 | 384.2 | |
| 0.96 | 3.15 | 0.54 | 1.76 | -18.25 | 16.79 | -13.47 | 151.58 | 0.4667 | -931.1 | -726.1 | |
| 2.19 | 3.85 | 1.26 | 2.22 | -20.60 | 14.37 | -15.89 | 150.05 | 0.5154 | 812.3 | 584.5 | |
| 0.00 | 2.10 | 0.00 | 1.22 | -21.13 | 13.45 | -16.82 | 149.20 | 0.5291 | -981.0 | -729.5 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -27.44 | 11.27 | -19.00 | 152.15 | 0.6206 | -690.0 | -551.3 | |
| 0.00 | 1.31 | 0.00 | 0.82 | -26.28 | 10.91 | -19.36 | 150.69 | 0.6094 | -662.0 | -518.7 | |
| 0.00 | 1.40 | 0.00 | 0.86 | -24.51 | 10.54 | -19.72 | 148.59 | 0.5914 | -823.0 | -672.5 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -21.87 | 9.71 | -20.55 | 144.81 | 0.5675 | -593.0 | -525.9 | |
| 0.00 | 1.84 | 0.00 | 1.18 | -27.12 | 7.51 | -22.75 | 147.48 | 0.6426 | -652.0 | -501.8 | |
| 0.00 | 1.22 | 0.00 | 0.81 | -28.42 | 5.84 | -24.42 | 146.90 | 0.6681 | -678.0 | -500.7 | |
| 0.00 | 0.87 | 0.00 | 0.58 | -28.17 | 5.75 | -24.51 | 146.57 | 0.6662 | -569.0 | -468.9 | |
| 0.00 | 0.87 | 0.00 | 0.58 | -28.80 | 5.56 | -24.70 | 146.95 | 0.6739 | -368.0 | -315.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
