SDO HMI 2014-10-12 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 24.22 | 0.00 | 13.65 | 13.50 | 57.10 | 27.39 | 287.88 | 0.4699 | 119.8 | 212.8 | |
|
previous
or next observation for the same group /

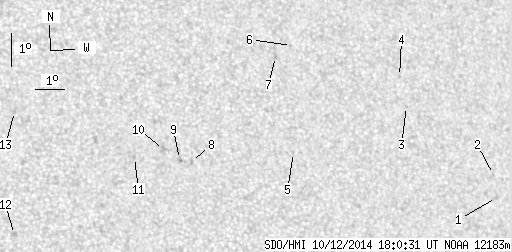

back to the solar disc SDO HMI 2014-10-12 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.10 | 0.00 | 1.30 | 11.56 | 66.46 | 36.75 | 281.24 | 0.5999 | -590.0 | -454.2 | |
| 0.00 | 1.05 | 0.00 | 0.65 | 12.26 | 66.46 | 36.75 | 282.40 | 0.6008 | -571.0 | -459.4 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 14.49 | 63.55 | 33.84 | 286.93 | 0.5658 | -551.0 | -433.5 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 15.41 | 63.46 | 33.75 | 288.55 | 0.5671 | -685.0 | -531.6 | |
| 0.00 | 1.14 | 0.00 | 0.65 | 13.34 | 59.27 | 29.56 | 286.27 | 0.5021 | 753.0 | 569.8 | |
| 0.00 | 0.61 | 0.00 | 0.35 | 16.57 | 59.70 | 29.99 | 292.25 | 0.5197 | -566.0 | -400.7 | |
| 0.00 | 2.36 | 0.00 | 1.36 | 16.26 | 59.08 | 29.36 | 292.01 | 0.5098 | -798.0 | -673.8 | |
| 0.00 | 2.27 | 0.00 | 1.26 | 13.24 | 55.71 | 26.00 | 287.61 | 0.4496 | 623.0 | 537.7 | |
| 0.00 | 2.54 | 0.00 | 1.40 | 13.32 | 55.31 | 25.60 | 287.99 | 0.4439 | 758.0 | 691.8 | |
| 0.00 | 4.81 | 0.00 | 2.65 | 13.64 | 54.80 | 25.09 | 288.98 | 0.4377 | 746.0 | 626.2 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 13.44 | 53.80 | 24.09 | 289.12 | 0.4219 | 836.0 | 709.6 | |
| 0.00 | 3.24 | 0.00 | 1.71 | 11.29 | 49.64 | 19.93 | 286.26 | 0.3497 | 855.0 | 527.9 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 14.99 | 49.96 | 20.25 | 295.80 | 0.3730 | 748.0 | 531.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
