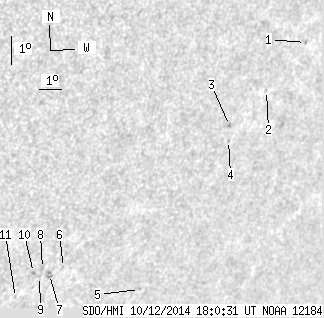

SDO HMI 2014-10-12 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.36 | 0.00 | 10.12 | -21.83 | 70.81 | 41.10 | 233.86 | 0.7584 | -94.4 | -119.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-12 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.98 | -16.70 | 76.81 | 47.10 | 243.20 | 0.7883 | 418.0 | 433.8 | |
| 0.00 | 0.96 | 0.00 | 0.76 | -18.14 | 75.50 | 45.79 | 240.88 | 0.7820 | 592.0 | 463.2 | |
| 0.00 | 1.40 | 0.00 | 1.09 | -19.18 | 74.19 | 44.48 | 238.99 | 0.7744 | 656.0 | 545.2 | |
| 0.00 | 1.05 | 0.00 | 0.82 | -19.68 | 74.32 | 44.61 | 238.48 | 0.7780 | 311.0 | 321.8 | |
| 0.00 | 1.05 | 0.00 | 0.83 | -24.52 | 72.21 | 42.50 | 231.82 | 0.7843 | 474.0 | 380.8 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -23.49 | 68.53 | 38.82 | 230.62 | 0.7460 | -533.0 | -473.0 | |
| 0.00 | 3.76 | 0.00 | 2.77 | -23.70 | 68.01 | 38.30 | 230.05 | 0.7427 | -617.0 | -570.6 | |
| 0.00 | 1.57 | 0.00 | 1.15 | -23.47 | 67.64 | 37.93 | 230.05 | 0.7378 | -647.0 | -573.0 | |
| 0.00 | 0.61 | 0.00 | 0.45 | -23.74 | 67.61 | 37.90 | 229.72 | 0.7393 | -660.0 | -593.9 | |
| 0.00 | 1.22 | 0.00 | 0.89 | -23.58 | 67.31 | 37.60 | 229.69 | 0.7356 | -460.0 | -531.4 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -24.40 | 66.84 | 37.13 | 228.44 | 0.7370 | -572.0 | -498.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
