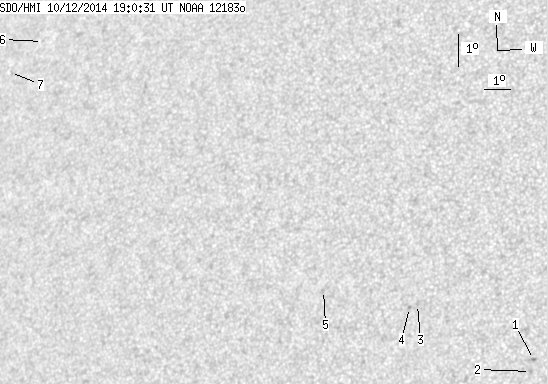

SDO HMI 2014-10-12 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.39 | 0.00 | 5.07 | 16.35 | 356.10 | -33.06 | 69.61 | 0.5527 | -404.3 | -383.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-12 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.92 | 0.00 | 1.07 | 14.00 | 3.27 | -25.88 | 70.68 | 0.4507 | -1002.0 | -760.7 | |
| 0.00 | 1.75 | 0.00 | 0.97 | 13.63 | 3.21 | -25.94 | 71.51 | 0.4502 | -874.0 | -664.4 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 15.47 | 359.00 | -30.16 | 69.89 | 0.5177 | -735.0 | -643.7 | |
| 0.00 | 1.31 | 0.00 | 0.76 | 15.36 | 358.73 | -30.43 | 70.21 | 0.5211 | -731.0 | -624.5 | |
| 0.00 | 1.05 | 0.00 | 0.63 | 15.71 | 355.51 | -33.64 | 70.90 | 0.5666 | -402.0 | -350.9 | |
| 0.00 | 0.87 | 0.00 | 0.65 | 22.53 | 341.71 | -47.45 | 65.15 | 0.7522 | 439.0 | 353.6 | |
| 0.00 | 0.70 | 0.00 | 0.53 | 21.47 | 340.64 | -48.52 | 66.79 | 0.7609 | 475.0 | 507.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
