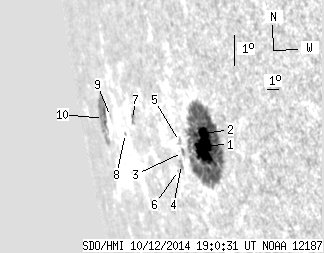

SDO HMI 2014-10-12 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.77 | 243.94 | 51.04 | 402.51 | -9.03 | 318.00 | -71.16 | 101.52 | 0.9519 | 449.4 | 152.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-12 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.45 | 200.73 | 46.22 | 286.12 | -8.95 | 320.90 | -68.26 | 101.90 | 0.9392 | 605.3 | 173.5 | |
| 3.32 | -1.00 | 4.82 | -1.00 | -8.67 | 320.34 | -68.82 | 101.50 | 0.9422 | -159.8 | 999999 | |
| 0.00 | 2.62 | 0.00 | 4.13 | -9.37 | 318.89 | -70.27 | 101.98 | 0.9508 | 164.0 | 110.3 | |
| 0.00 | 3.50 | 0.00 | 5.62 | -9.77 | 318.61 | -70.55 | 102.34 | 0.9526 | -337.0 | -285.3 | |
| 0.00 | 2.71 | 0.00 | 4.28 | -9.04 | 318.77 | -70.39 | 101.62 | 0.9511 | 86.0 | 81.9 | |
| 0.00 | 0.26 | 0.00 | 0.43 | -9.99 | 318.21 | -70.95 | 102.50 | 0.9548 | -273.0 | -297.0 | |
| 0.00 | 2.89 | 0.00 | 6.08 | -8.86 | 313.98 | -75.18 | 100.66 | 0.9730 | -458.0 | -410.3 | |
| 0.00 | 0.79 | 0.00 | 1.84 | -9.42 | 312.73 | -76.43 | 101.04 | 0.9780 | -124.0 | -120.2 | |
| 0.00 | 1.31 | 0.00 | 3.56 | -9.09 | 310.84 | -78.31 | 100.44 | 0.9841 | -169.0 | -203.8 | |
| 0.00 | 29.13 | 0.00 | 90.45 | -9.29 | 309.54 | -79.62 | 100.46 | 0.9879 | 436.0 | 190.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
