SDO HMI 2014-10-12 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.66 | 0.00 | 9.67 | -22.25 | 69.73 | 41.12 | 233.35 | 0.7619 | -231.5 | -205.6 | |
|
previous
or next observation for the same group /

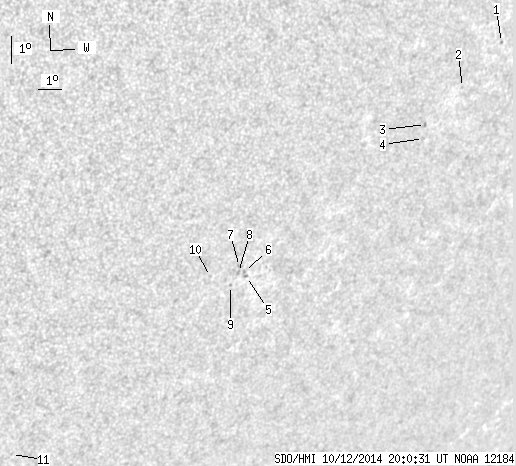

back to the solar disc SDO HMI 2014-10-12 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.72 | -16.76 | 76.89 | 48.28 | 243.65 | 0.7998 | 408.0 | 369.0 | |
| 0.00 | 0.96 | 0.00 | 0.78 | -18.10 | 75.53 | 46.92 | 241.47 | 0.7925 | 500.0 | 373.0 | |
| 0.00 | 1.66 | 0.00 | 1.32 | -19.20 | 74.22 | 45.62 | 239.55 | 0.7851 | 639.0 | 507.6 | |
| 0.00 | 0.61 | 0.00 | 0.49 | -19.67 | 74.30 | 45.69 | 239.05 | 0.7880 | 199.0 | 219.4 | |
| 0.00 | 1.40 | 0.00 | 1.05 | -23.81 | 68.04 | 39.44 | 230.68 | 0.7535 | -565.0 | -503.8 | |
| 0.00 | 1.22 | 0.00 | 0.92 | -23.63 | 67.89 | 39.29 | 230.79 | 0.7510 | -698.0 | -542.0 | |
| 0.00 | 1.57 | 0.00 | 1.17 | -23.44 | 67.61 | 39.01 | 230.81 | 0.7473 | -709.0 | -558.5 | |
| 0.00 | 1.57 | 0.00 | 1.17 | -23.65 | 67.64 | 39.04 | 230.60 | 0.7489 | -682.0 | -613.9 | |
| 0.00 | 0.87 | 0.00 | 0.65 | -24.08 | 67.46 | 38.85 | 230.00 | 0.7500 | -464.0 | -392.4 | |
| 0.00 | 1.14 | 0.00 | 0.83 | -23.70 | 66.49 | 37.89 | 229.76 | 0.7390 | -615.0 | -472.2 | |
| 0.00 | 0.79 | 0.00 | 0.57 | -29.58 | 60.40 | 31.79 | 218.85 | 0.7327 | -559.0 | -482.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
