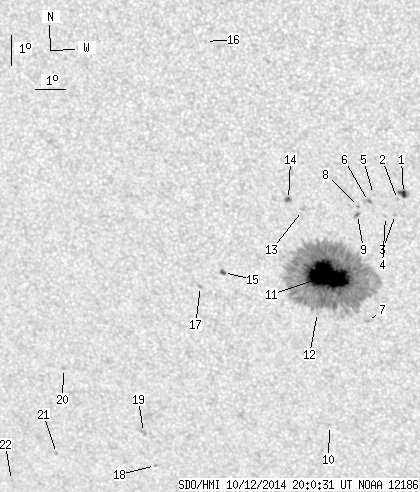

SDO HMI 2014-10-12 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.49 | 501.69 | 42.62 | 284.15 | -20.71 | 17.50 | -11.11 | 158.16 | 0.4853 | 949.8 | 375.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-12 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.50 | 7.00 | 1.92 | 3.84 | -17.95 | 20.22 | -8.39 | 161.12 | 0.4305 | 1049.3 | 827.8 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -18.15 | 20.02 | -8.59 | 160.86 | 0.4345 | 804.0 | 618.0 | |
| 0.00 | 1.57 | 0.00 | 0.87 | -18.64 | 19.93 | -8.68 | 161.06 | 0.4423 | 379.0 | 465.1 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -18.71 | 19.61 | -9.00 | 160.47 | 0.4450 | 606.0 | 414.0 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -17.99 | 19.26 | -9.34 | 159.19 | 0.4363 | -510.0 | -467.5 | |
| 0.00 | 3.24 | 0.00 | 1.78 | -18.23 | 19.09 | -9.51 | 159.04 | 0.4407 | 971.0 | 771.3 | |
| 0.00 | 2.10 | 0.00 | 1.20 | -22.24 | 18.80 | -9.81 | 161.55 | 0.5001 | -889.0 | -696.0 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -18.40 | 18.76 | -9.84 | 158.53 | 0.4450 | 667.0 | 585.0 | |
| 0.70 | 2.54 | 0.39 | 1.41 | -18.66 | 18.71 | -9.89 | 158.66 | 0.4491 | 948.5 | 801.4 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -25.87 | 17.22 | -11.38 | 161.38 | 0.5582 | 714.0 | 521.5 | |
| 68.84 | 463.65 | 38.93 | 262.40 | -20.71 | 17.61 | -11.00 | 158.30 | 0.4847 | 1481.8 | 405.1 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -21.96 | 17.18 | -11.43 | 158.56 | 0.5046 | -150.0 | -100.2 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -18.56 | 16.95 | -11.65 | 155.20 | 0.4585 | -749.0 | -582.0 | |
| 1.14 | 2.62 | 0.63 | 1.46 | -18.21 | 16.53 | -12.08 | 154.07 | 0.4564 | -1038.7 | -836.1 | |
| 1.31 | 2.54 | 0.75 | 1.45 | -20.69 | 14.20 | -14.41 | 152.48 | 0.5059 | 832.9 | 683.3 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -13.18 | 14.22 | -14.39 | 143.43 | 0.4079 | -755.0 | -642.2 | |
| 0.00 | 1.57 | 0.00 | 0.91 | -21.18 | 13.38 | -15.22 | 151.67 | 0.5180 | -879.0 | -735.4 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -27.46 | 10.99 | -17.61 | 153.89 | 0.6123 | -728.0 | -635.6 | |
| 0.00 | 2.89 | 0.00 | 1.78 | -26.29 | 10.76 | -17.84 | 152.62 | 0.5997 | -693.0 | -630.8 | |
| 0.00 | 1.57 | 0.00 | 0.97 | -24.14 | 8.31 | -20.29 | 147.51 | 0.5914 | -666.0 | -436.9 | |
| 0.00 | 0.87 | 0.00 | 0.56 | -27.16 | 7.51 | -21.09 | 149.40 | 0.6314 | -840.0 | -777.3 | |
| 0.00 | 1.05 | 0.00 | 0.69 | -28.21 | 5.65 | -22.96 | 148.25 | 0.6557 | -695.0 | -529.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
