SDO HMI 2014-10-12 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.38 | 247.61 | 52.84 | 393.55 | -8.98 | 318.29 | -70.32 | 101.61 | 0.9478 | 484.1 | 156.5 | |
|
previous
or next observation for the same group /

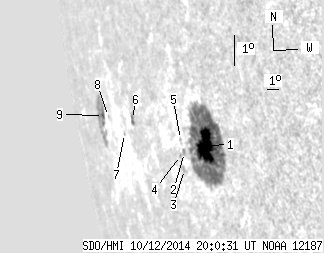

back to the solar disc SDO HMI 2014-10-12 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.81 | 206.59 | 48.38 | 287.04 | -8.92 | 320.93 | -67.68 | 101.97 | 0.9357 | 613.4 | 175.7 | |
| 0.00 | 2.27 | 0.00 | 3.48 | -9.33 | 318.98 | -69.62 | 102.05 | 0.9473 | 197.0 | 154.2 | |
| 0.00 | 2.45 | 0.00 | 3.81 | -9.88 | 318.73 | -69.88 | 102.58 | 0.9492 | -189.0 | -199.4 | |
| 0.00 | 1.14 | 0.00 | 1.77 | -9.47 | 318.57 | -70.04 | 102.12 | 0.9497 | -378.0 | -337.7 | |
| 0.00 | 0.96 | 0.00 | 1.48 | -8.95 | 318.80 | -69.81 | 101.62 | 0.9479 | 176.0 | 116.3 | |
| 0.00 | 3.85 | 0.00 | 7.78 | -8.82 | 314.03 | -74.57 | 100.71 | 0.9706 | -502.0 | -413.2 | |
| 0.00 | 0.79 | 0.00 | 1.76 | -9.39 | 312.71 | -75.90 | 101.09 | 0.9761 | -111.0 | -124.4 | |
| 0.00 | 0.52 | 0.00 | 1.37 | -9.07 | 310.76 | -77.85 | 100.49 | 0.9826 | -291.0 | -318.2 | |
| 1.57 | 29.04 | 4.46 | 85.06 | -9.12 | 309.95 | -78.65 | 100.43 | 0.9851 | 86.7 | 197.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
