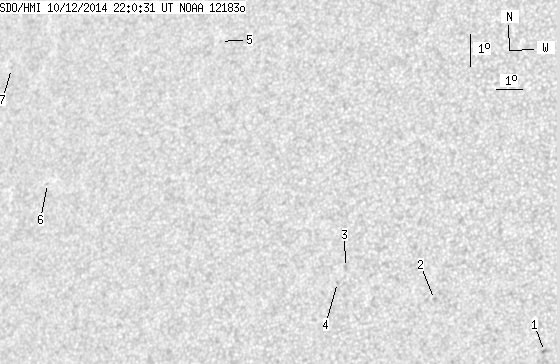

SDO HMI 2014-10-12 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.74 | 0.00 | 5.27 | 16.80 | 354.43 | -33.07 | 68.67 | 0.5575 | -187.3 | -296.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-12 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.66 | 0.00 | 0.91 | 14.03 | 3.11 | -24.39 | 69.73 | 0.4289 | -840.0 | -783.7 | |
| 0.00 | 2.10 | 0.00 | 1.19 | 15.43 | 359.13 | -28.37 | 69.07 | 0.4924 | -774.0 | -541.1 | |
| 0.00 | 1.84 | 0.00 | 1.08 | 16.24 | 355.79 | -31.71 | 69.17 | 0.5420 | -703.0 | -557.5 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 15.77 | 355.58 | -31.92 | 70.10 | 0.5432 | -705.0 | -555.7 | |
| 0.00 | 0.61 | 0.00 | 0.40 | 22.87 | 349.29 | -38.21 | 61.44 | 0.6512 | 580.0 | 510.9 | |
| 0.00 | 0.96 | 0.00 | 0.67 | 18.06 | 343.49 | -44.01 | 70.33 | 0.7038 | 578.0 | 447.8 | |
| 0.00 | 0.61 | 0.00 | 0.45 | 21.43 | 340.62 | -46.88 | 66.43 | 0.7436 | 553.0 | 469.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
