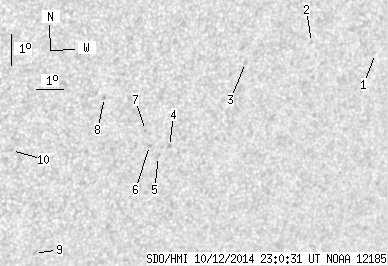

SDO HMI 2014-10-12 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.37 | 0.00 | 8.30 | -15.43 | 57.07 | 30.12 | 233.74 | 0.6023 | 242.1 | 273.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-12 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.41 | -13.35 | 64.56 | 37.61 | 242.37 | 0.6725 | 529.0 | 512.9 | |
| 0.00 | 1.31 | 0.00 | 0.84 | -12.83 | 62.02 | 35.07 | 241.44 | 0.6402 | 552.0 | 419.6 | |
| 0.00 | 1.49 | 0.00 | 0.93 | -13.32 | 59.65 | 32.70 | 239.04 | 0.6153 | -694.0 | -473.0 | |
| 0.00 | 1.66 | 0.00 | 1.03 | -15.86 | 57.29 | 30.34 | 233.53 | 0.6065 | 590.0 | 538.7 | |
| 0.00 | 2.01 | 0.00 | 1.25 | -16.16 | 56.94 | 30.00 | 232.81 | 0.6050 | 416.0 | 395.8 | |
| 0.00 | 1.66 | 0.00 | 1.03 | -15.78 | 56.56 | 29.61 | 232.98 | 0.5978 | 746.0 | 667.3 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -15.29 | 56.34 | 29.39 | 233.46 | 0.5914 | 749.0 | 626.2 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -14.15 | 54.73 | 27.78 | 233.58 | 0.5638 | -657.0 | -519.6 | |
| 0.00 | 1.75 | 0.00 | 1.07 | -19.11 | 53.02 | 26.08 | 225.03 | 0.5893 | 702.0 | 547.3 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -15.69 | 51.72 | 24.77 | 228.16 | 0.5435 | -512.0 | -434.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
