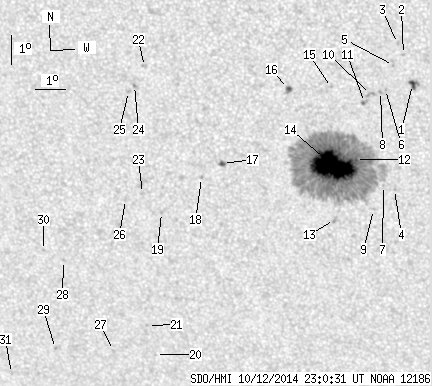

SDO HMI 2014-10-12 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.51 | 525.24 | 44.70 | 295.97 | -20.69 | 17.36 | -9.59 | 160.92 | 0.4770 | 777.0 | 341.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-12 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.71 | 5.86 | 1.48 | 3.20 | -18.00 | 20.27 | -6.67 | 164.80 | 0.4233 | 1092.3 | 853.1 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -17.02 | 20.03 | -6.92 | 163.59 | 0.4095 | 645.0 | 545.7 | |
| 0.00 | 1.49 | 0.00 | 0.80 | -16.67 | 19.85 | -7.10 | 162.93 | 0.4049 | 750.0 | 555.7 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -21.50 | 19.54 | -7.41 | 165.43 | 0.4790 | -690.0 | -588.3 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -17.38 | 19.70 | -7.25 | 163.12 | 0.4165 | 838.0 | 721.0 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -18.17 | 19.41 | -7.54 | 163.07 | 0.4298 | 761.0 | 555.6 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -21.37 | 19.19 | -7.76 | 164.70 | 0.4784 | 328.0 | 249.7 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -18.24 | 19.25 | -7.70 | 162.77 | 0.4315 | 764.0 | 758.6 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -22.19 | 18.82 | -8.13 | 164.49 | 0.4919 | -850.0 | -614.8 | |
| 0.00 | 2.89 | 0.00 | 1.59 | -18.34 | 18.93 | -8.02 | 162.18 | 0.4346 | 664.0 | 695.3 | |
| 0.00 | 2.27 | 0.00 | 1.25 | -18.61 | 18.72 | -8.23 | 161.95 | 0.4396 | 1002.0 | 828.5 | |
| 0.79 | 477.32 | 0.44 | 268.71 | -20.51 | 18.33 | -8.62 | 162.53 | 0.4695 | 1157.2 | 388.5 | |
| 0.00 | 2.62 | 0.00 | 1.50 | -22.55 | 17.52 | -9.43 | 162.40 | 0.5028 | -286.0 | -391.9 | |
| 72.87 | -12.00 | 41.01 | -12.00 | -20.72 | 17.57 | -9.38 | 161.26 | 0.4762 | 1431.5 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -18.13 | 17.69 | -9.25 | 159.48 | 0.4378 | -703.0 | -553.7 | |
| 1.57 | 4.11 | 0.87 | 2.28 | -18.19 | 16.32 | -10.63 | 156.79 | 0.4467 | -959.6 | -694.6 | |
| 1.57 | 2.80 | 0.90 | 1.60 | -20.73 | 13.98 | -12.96 | 154.90 | 0.4967 | 828.1 | 605.7 | |
| 0.00 | 1.22 | 0.00 | 0.70 | -21.22 | 13.25 | -13.70 | 154.13 | 0.5081 | -972.0 | -753.5 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -22.44 | 11.79 | -15.16 | 152.96 | 0.5338 | -676.0 | -491.2 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -27.42 | 10.93 | -16.02 | 155.91 | 0.6024 | -570.0 | -481.6 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -26.39 | 10.80 | -16.15 | 154.93 | 0.5903 | -666.0 | -548.8 | |
| 0.00 | 2.36 | 0.00 | 1.33 | -17.58 | 11.72 | -15.23 | 147.77 | 0.4716 | -721.0 | -557.9 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -21.81 | 11.22 | -15.73 | 151.51 | 0.5296 | -456.0 | -455.5 | |
| 0.00 | 1.84 | 0.00 | 1.04 | -18.21 | 11.33 | -15.62 | 147.87 | 0.4828 | -958.0 | -743.0 | |
| 0.00 | 1.75 | 0.00 | 0.99 | -18.42 | 11.12 | -15.83 | 147.76 | 0.4871 | -751.0 | -584.1 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -22.03 | 10.63 | -16.32 | 150.83 | 0.5367 | -259.0 | -309.1 | |
| 0.00 | 1.22 | 0.00 | 0.76 | -27.32 | 9.46 | -17.49 | 153.94 | 0.6098 | -565.0 | -492.6 | |
| 0.00 | 1.49 | 0.00 | 0.90 | -24.20 | 8.21 | -18.74 | 149.57 | 0.5806 | -639.0 | -452.6 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -27.33 | 7.40 | -19.55 | 151.38 | 0.6228 | -754.0 | -578.7 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -23.88 | 7.57 | -19.38 | 148.41 | 0.5815 | -717.0 | -521.3 | |
| 0.00 | 0.87 | 0.00 | 0.57 | -28.29 | 5.62 | -21.33 | 150.14 | 0.6455 | -707.0 | -586.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
