SDO HMI 2014-10-13 00:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.13 | 514.72 | 41.04 | 289.17 | -20.64 | 17.49 | -8.91 | 162.10 | 0.4729 | 986.7 | 372.9 | |
|
previous
or next observation for the same group /

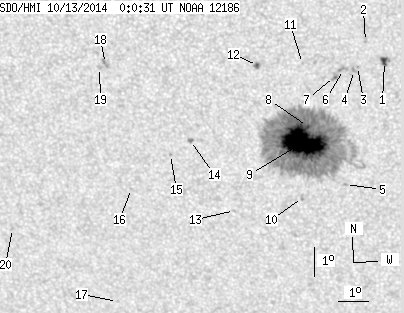

back to the solar disc SDO HMI 2014-10-13 00:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.97 | 5.60 | 1.62 | 3.06 | -18.03 | 20.32 | -6.08 | 166.12 | 0.4214 | 1081.1 | 822.9 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -17.38 | 19.75 | -6.65 | 164.43 | 0.4137 | 807.0 | 657.4 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -18.20 | 19.46 | -6.94 | 164.36 | 0.4275 | 787.0 | 719.1 | |
| 0.00 | 2.80 | 0.00 | 1.53 | -18.33 | 19.36 | -7.04 | 164.24 | 0.4299 | 964.0 | 727.8 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -22.15 | 18.88 | -7.51 | 165.60 | 0.4889 | -831.0 | -721.5 | |
| 0.00 | 4.29 | 0.00 | 2.35 | -18.31 | 19.01 | -7.39 | 163.48 | 0.4310 | 706.0 | 597.2 | |
| 0.00 | 3.67 | 0.00 | 2.02 | -18.54 | 18.71 | -7.68 | 163.02 | 0.4359 | 690.0 | 671.2 | |
| 0.26 | 476.41 | 0.15 | 267.75 | -20.21 | 17.76 | -8.64 | 162.29 | 0.4651 | 1472.3 | 396.5 | |
| 68.68 | -8.00 | 38.59 | -8.00 | -20.75 | 17.57 | -8.83 | 162.30 | 0.4739 | 1432.7 | 999999 | |
| 0.00 | 2.19 | 0.00 | 1.25 | -22.61 | 17.45 | -8.95 | 163.29 | 0.5015 | -288.0 | -374.3 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -18.13 | 17.72 | -8.68 | 160.64 | 0.4346 | -711.0 | -514.9 | |
| 1.22 | 2.89 | 0.68 | 1.59 | -18.22 | 16.27 | -10.12 | 157.81 | 0.4439 | -964.6 | -758.7 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -23.10 | 15.17 | -11.23 | 159.74 | 0.5192 | 599.0 | 465.5 | |
| 0.00 | 2.62 | 0.00 | 1.49 | -20.75 | 13.92 | -12.48 | 155.75 | 0.4939 | 925.0 | 733.8 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -21.24 | 13.22 | -13.18 | 155.01 | 0.5049 | -873.0 | -753.0 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -22.43 | 11.81 | -14.59 | 153.82 | 0.5298 | -637.0 | -478.9 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -26.38 | 10.84 | -15.56 | 155.72 | 0.5866 | -623.0 | -493.2 | |
| 0.00 | 3.50 | 0.00 | 1.97 | -18.27 | 11.36 | -15.03 | 148.89 | 0.4788 | -893.0 | -762.5 | |
| 0.00 | 2.19 | 0.00 | 1.24 | -18.40 | 11.15 | -15.24 | 148.70 | 0.4822 | -687.0 | -575.9 | |
| 0.00 | 1.22 | 0.00 | 0.74 | -23.93 | 7.56 | -18.83 | 149.17 | 0.5780 | -745.0 | -579.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
