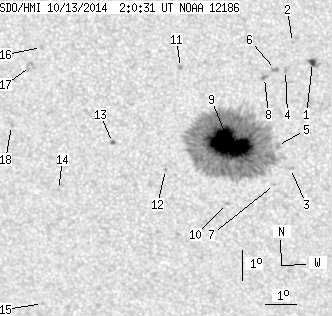

SDO HMI 2014-10-13 02:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.80 | 497.16 | 43.55 | 278.52 | -20.65 | 17.47 | -7.83 | 164.15 | 0.4682 | 1035.0 | 362.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-13 02:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.80 | 5.69 | 1.53 | 3.10 | -18.03 | 20.33 | -4.97 | 168.57 | 0.4174 | 1141.0 | 763.9 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -17.38 | 19.72 | -5.58 | 166.84 | 0.4093 | 677.0 | 590.9 | |
| 0.00 | 2.71 | 0.00 | 1.52 | -21.56 | 19.50 | -5.80 | 168.52 | 0.4741 | -417.0 | -341.3 | |
| 0.00 | 1.40 | 0.00 | 0.77 | -18.30 | 19.46 | -5.83 | 166.81 | 0.4245 | 990.0 | 845.6 | |
| 0.00 | 2.80 | 0.00 | 1.56 | -20.79 | 19.11 | -6.18 | 167.40 | 0.4637 | 355.0 | 348.2 | |
| 0.00 | 2.98 | 0.00 | 1.63 | -18.27 | 19.15 | -6.15 | 166.10 | 0.4252 | 889.0 | 766.5 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -22.11 | 18.96 | -6.34 | 167.75 | 0.4841 | -776.0 | -640.3 | |
| 0.00 | 2.45 | 0.00 | 1.34 | -18.54 | 18.79 | -6.51 | 165.49 | 0.4307 | 965.0 | 821.3 | |
| 74.30 | 459.10 | 41.62 | 257.28 | -20.74 | 17.57 | -7.73 | 164.37 | 0.4688 | 1445.2 | 398.3 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -22.78 | 17.39 | -7.91 | 165.22 | 0.4995 | -634.0 | -577.2 | |
| 0.00 | 2.45 | 0.00 | 1.35 | -18.24 | 16.13 | -9.17 | 159.74 | 0.4388 | -986.0 | -827.1 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -21.65 | 15.43 | -9.86 | 161.03 | 0.4918 | 691.0 | 545.6 | |
| 0.70 | 2.01 | 0.40 | 1.14 | -20.78 | 13.77 | -11.53 | 157.41 | 0.4884 | 813.8 | 607.1 | |
| 0.00 | 1.31 | 0.00 | 0.76 | -22.41 | 11.84 | -13.46 | 155.57 | 0.5223 | -732.0 | -506.7 | |
| 0.00 | 1.40 | 0.00 | 0.85 | -26.39 | 10.84 | -14.45 | 157.25 | 0.5804 | -643.0 | -518.6 | |
| 0.00 | 2.10 | 0.00 | 1.17 | -17.68 | 11.71 | -13.59 | 150.73 | 0.4598 | -734.0 | -663.1 | |
| 0.00 | 5.60 | 0.00 | 3.14 | -18.31 | 11.30 | -14.00 | 150.71 | 0.4713 | -382.0 | -686.9 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -20.29 | 10.50 | -14.80 | 151.44 | 0.5032 | -662.0 | -533.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
